NSEC00K016-IT

Memory IC Overview

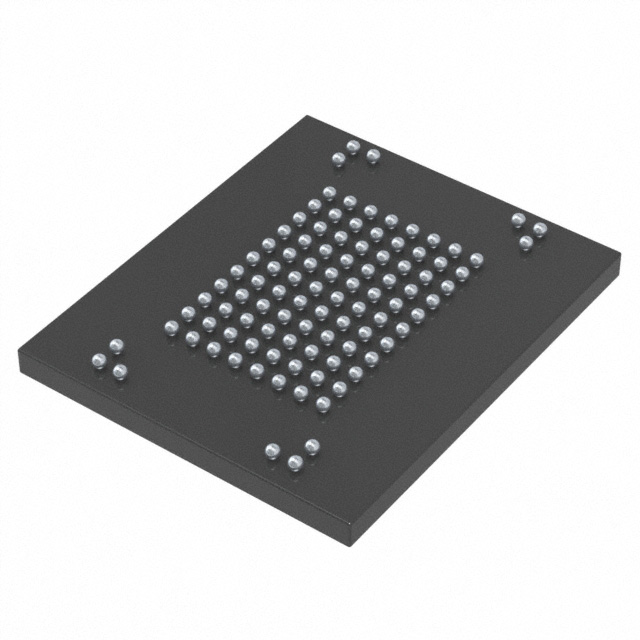

The NSEC00K016-IT is a non-volatile NAND flash memory IC manufactured by Insignis Technology Corporation. It offers a storage capacity of 128 Gbit (16 GB) organized as 16G x 8 bits. The device operates at a clock frequency of 200 MHz and utilizes the eMMC interface standard. It is housed in a 100-BGA package with dimensions of 14x18 mm. The component supports a supply voltage of 3.3V for VCC and 1.8V or 3.3V for VCCQ. It is designed for industrial temperature ranges, functioning between -40°C and 85°C.

Memory IC Feature Summary

• Complies with JEDEC eMMC 5.0 standards for standardized embedded multimedia card interfaces.
• Utilizes Multi-Level Cell (MLC) NAND technology to provide high-density data storage within a compact form factor.
• Supports dual voltage levels for the I/O interface, accommodating both 1.8V and 3.3V logic requirements.

Memory IC Applications

• Embedded systems requiring robust non-volatile storage solutions
• Industrial control units operating in wide temperature environments
• Portable electronic devices utilizing eMMC interface protocols

Memory IC Procurement Notes

Verify the specific package type and voltage configurations against your system design requirements before procurement. Ensure compatibility with the host controller's eMMC interface version. Confirm that the industrial temperature rating meets your operational environmental constraints. Cross-reference the manufacturer part number with official distributor catalogs to ensure authenticity and correct revision status.

Memory IC Selection Notes

Select this component when a high-capacity, small-footprint storage solution is required for embedded applications. The 100-BGA package suits space-constrained designs. Consider the MLC technology trade-offs regarding endurance and speed compared to SLC alternatives. Verify that the host system supports the 200 MHz clock speed and the specified voltage domains for reliable operation.

Memory IC Part Context

This part belongs to the NSEC series of embedded flash memory products from Insignis Technology Corporation. The series focuses on providing JEDEC-compliant eMMC solutions for various consumer and industrial electronics. The NSEC00K016-IT represents a high-density option within this lineup, targeting applications needing significant storage in a minimal board area.

Memory IC Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for direct equivalents or compatible upgrades based on specific pinout and electrical parameter matching.
