NSL21631-Q1HTPR

Overview

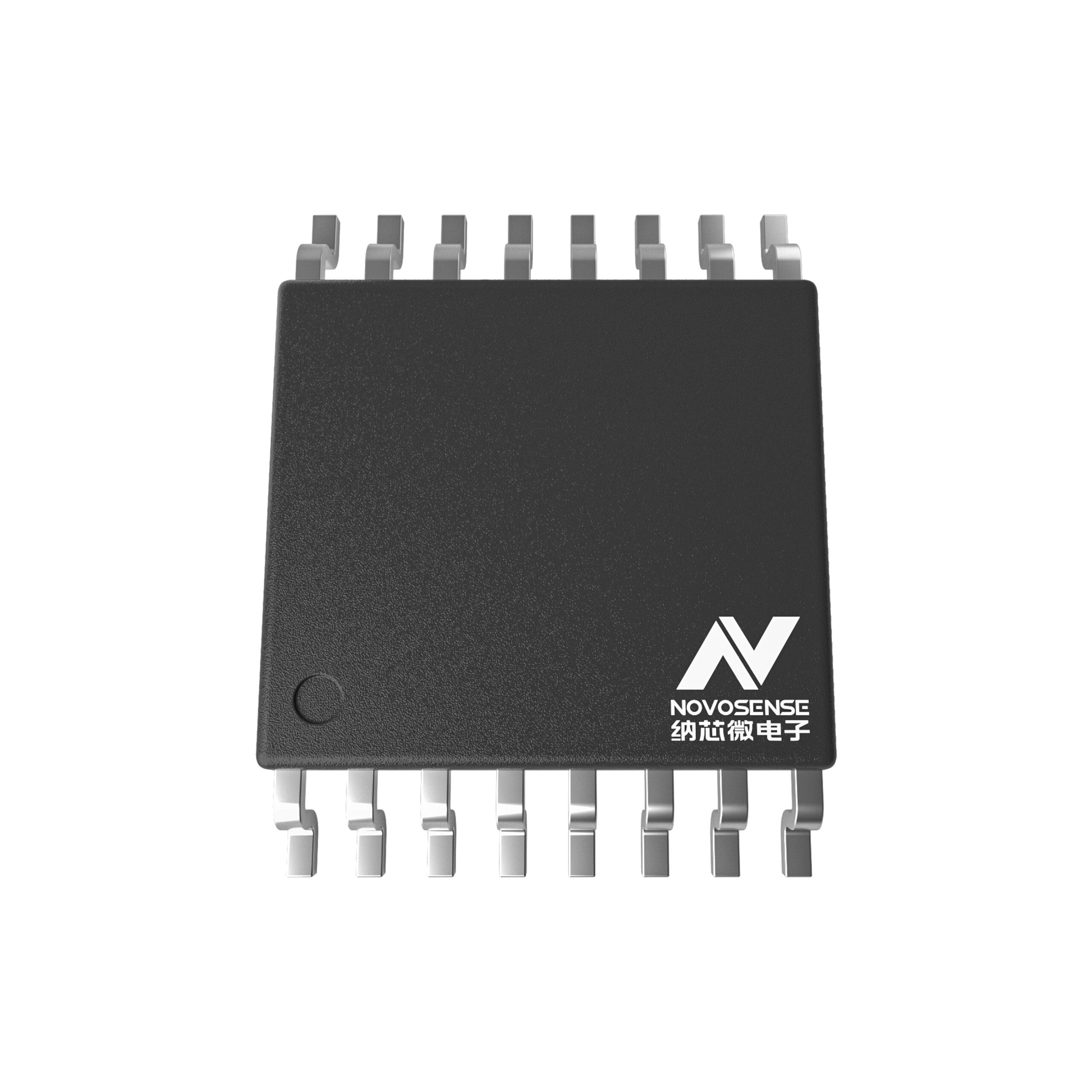

The NSL21631-Q1HTPR is a three-channel automotive-grade linear LED driver from NOVOSENSE, designed for high-reliability lighting applications. It delivers up to 200 mA per channel with a maximum supply voltage of 40 V, enabling direct connection to vehicle battery systems. The device supports PWM dimming and integrates comprehensive diagnostic features, including open-load and short-to-ground detection. Operating within an extended temperature range of -40°C to +125°C, it ensures stable performance in harsh automotive environments while maintaining precise current regulation across all output channels.

Feature Summary

• Three independent linear constant-current output channels for multi-LED configurations
• Integrated thermal balancing architecture to manage power dissipation and enhance reliability
• Comprehensive fault detection system supporting configurable shutdown or latching behaviors
• Direct compatibility with standard automotive power supply voltages

Applications

• Automotive exterior lighting modules requiring multi-channel control
• Interior ambient lighting systems with precise brightness regulation
• High-reliability indicator arrays in automotive instrument clusters
• LED signature lighting elements in modern vehicle designs

Procurement Notes

Verify the specific suffix HTPR corresponds to the tape-and-reel packaging format required for your assembly line equipment. Confirm that the AEC-Q100 qualification status meets your OEM's component approval standards. Ensure the 8-pin or 16-pin variant matches your PCB footprint design, as package variations exist within the series. Cross-reference the latest datasheet revision to confirm pinout consistency before finalizing procurement orders.

Selection Notes

Select this component when a three-channel solution is required for automotive LED applications. The 200 mA per channel rating suits medium-intensity lighting needs without excessive heat generation. Consider the linear topology for simplified circuit design compared to switching drivers. Evaluate the thermal management requirements based on the total power dissipation across all three channels under maximum load conditions.

Part Context

This part belongs to the NSL216xx-Q1 family of automotive LED drivers, which emphasizes robustness and diagnostic capabilities. Unlike single-channel variants such as the NSL21611, this model provides three outputs for more complex lighting topologies. The series shares common architectural features like thermal balancing and fault detection, ensuring consistent performance characteristics across different channel counts within the same product line.

Replacement Considerations

Check for NSL21611-Q1HMSR if only a single channel is needed, noting the difference in output count. Verify compatibility with NSL21630-Q1HTPR if two channels suffice, as they share similar packaging and electrical characteristics. Ensure any substitute maintains the same AEC-Q100 grade and operating temperature range to preserve system reliability.

FAQ

What is the maximum supply voltage supported by the NSL21631-Q1HTPR?

The device supports a wide supply voltage range up to 40 V, allowing direct connection to automotive battery systems.

Does the NSL21631-Q1HTPR support PWM dimming?

Yes, the driver includes integrated PWM dimming functionality for precise brightness control of the connected LEDs.

How does the device handle fault conditions?

It supports configurable fault responses, allowing users to choose between shutting down all channels upon a single fault or keeping other channels operational.
