NSL21912-Q1HTSXR

Overview

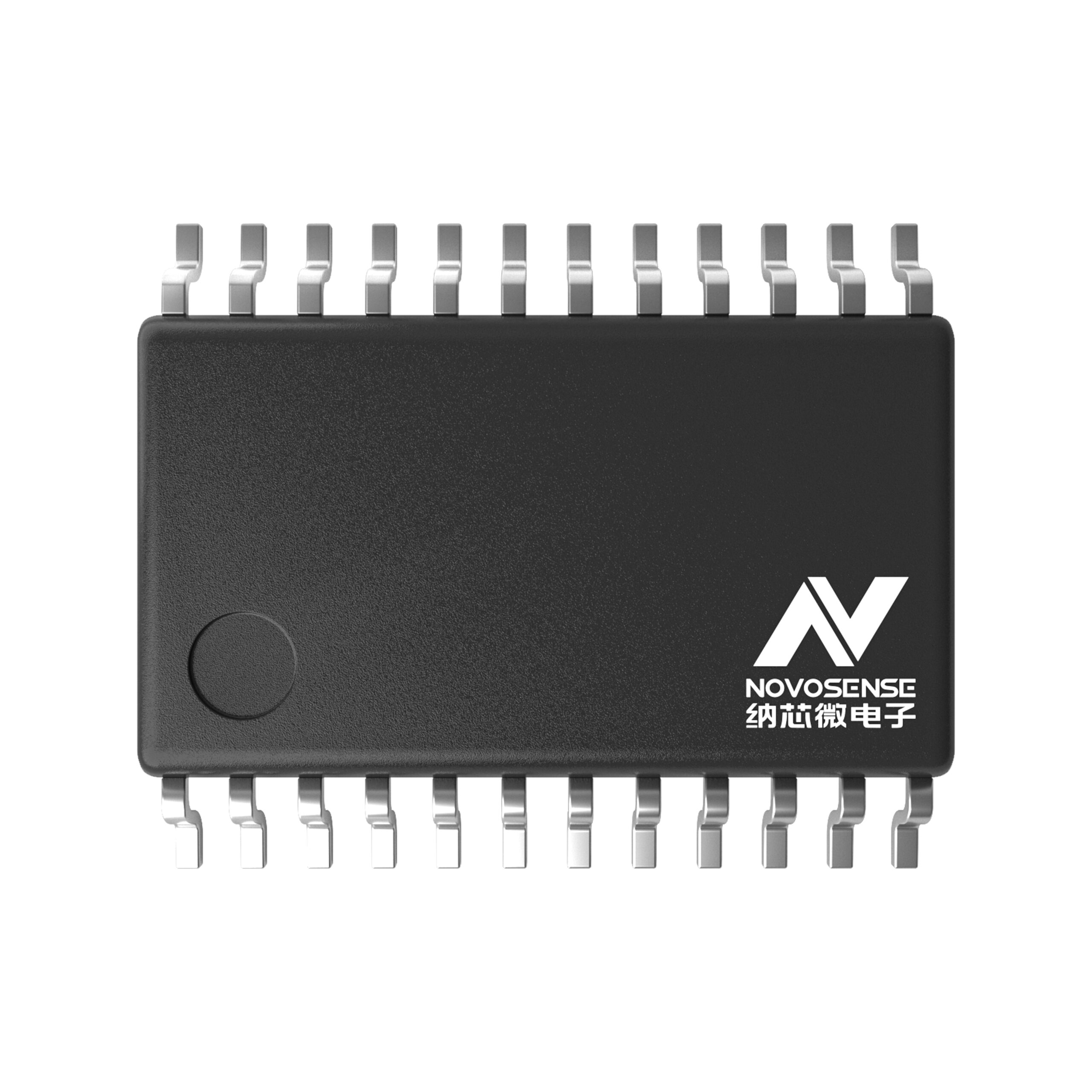

The NSL21912-Q1HTSXR is a 12-channel automotive-grade high-side LED driver manufactured by Novosense. It features an integrated PWM generator capable of producing linear or exponential brightness profiles for interior vehicle lighting applications such as instrument clusters, door lamps, and ambient lighting. The device utilizes internal oscillation to generate PWM signals, which control the brightness of eleven output channels via peripheral interface commands. The twelfth channel functions as a fault detection pin. High-side current sensing is implemented through an external shunt resistor (RSHUNT) to monitor and regulate current levels. Output current configuration is managed via a reference voltage (VREF) set by an external resistor (RREF) and an internal 16-bit digital-to-analog converter (DAC).

Feature Summary

• Configurable PWM generation supporting linear or exponential brightness curves for specific lighting effects.
• High-side current monitoring using external shunt resistors for precise current control.
• Integrated over-temperature protection that automatically reduces output current to prevent thermal damage.
• Supports multiple device addressing via ADDR0 to ADDR2 pins for multi-chip bus operation.

Applications

• Vehicle interior illumination systems including dashboard and instrument cluster lighting.
• Door lamp and reading light control in automotive interiors.
• Ambient lighting systems requiring configurable brightness profiles.
• Multi-channel LED string driving in complex automotive lighting architectures.

Procurement Notes

Verify the component authenticity against official Novosense documentation. Confirm that the part number suffix matches the required tape and reel packaging specifications. Ensure the automotive grade qualification aligns with target application requirements. Cross-reference the datasheet revision to validate electrical parameters and absolute maximum ratings before integration into design schematics.

Selection Notes

Select this driver when designing automotive interior lighting systems requiring high channel counts and programmable brightness gradients. Consider the I2C communication protocol for system integration and the availability of address pins for expanding channel capacity. Evaluate the thermal management requirements based on the integrated over-temperature protection features and the need for external current sensing components.

Part Context

The NSL21912 belongs to Novosense's portfolio of automotive-grade LED drivers designed for high-reliability applications. It addresses the need for sophisticated lighting control in modern vehicles, offering features like configurable PWM outputs and robust fault detection mechanisms. The chip supports I2C communication with CRC verification to ensure data integrity in noisy automotive environments.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify compatibility with existing system designs before considering alternative components from other manufacturers.

FAQ

How is the output current configured in the NSL21912?

Output current is configured via a reference voltage (VREF) established by an external resistor (RREF) and an internal 16-bit digital-to-analog converter (DAC), allowing programming through the I2C interface or external PWM signals.

What is the function of the twelfth output channel?

The twelfth channel serves as a fault detection pin, notifying the system of abnormalities such as output short circuits or over-temperature conditions.

Can multiple NSL21912 chips operate on the same bus?

Yes, multiple chips can operate simultaneously without conflict by setting different device addresses using the ADDR0 to ADDR2 pins, enabling cascaded control of additional LED channels.
