NSV60100DMTWTBG

Overview

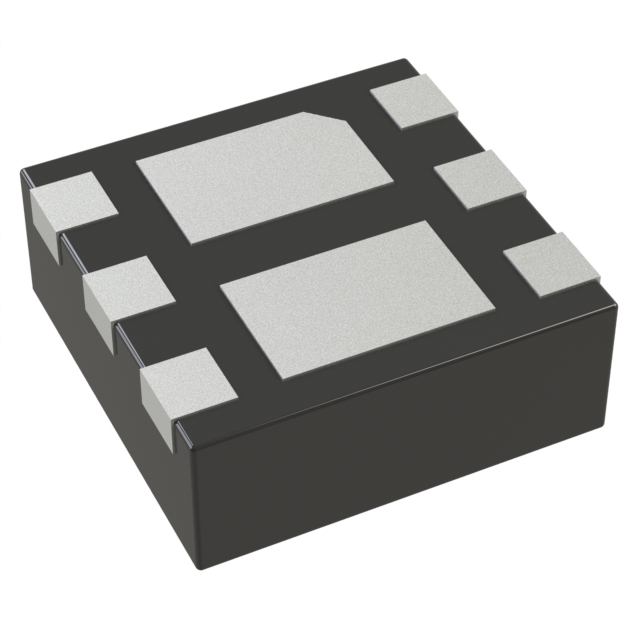

The NSV60100DMTWTBG is a dual NPN bipolar junction transistor (BJT) array manufactured by onsemi. It features a maximum collector-emitter voltage of 60 V and a continuous collector current of 2 A per element. The device operates with a power dissipation of 510 mW and exhibits a transition frequency of 140 MHz. Packaged in a compact 6-HUSON (2x2 mm) surface-mount configuration, it supports a maximum junction temperature of 150°C. This component is designed for high-speed switching applications requiring low saturation voltage and robust performance within automotive-grade reliability standards.

Feature Summary

• Dual NPN configuration integrated into a single compact package
• Automotive-grade qualification ensuring reliability under harsh conditions
• Low collector-emitter saturation voltage for efficient power handling
• High transition frequency suitable for fast switching operations

Applications

• Automotive lighting control circuits
• General-purpose switching in automotive electronic control units
• Driver stages for sensors and actuators in vehicle systems

Procurement Notes

Verify the specific ordering suffix to confirm the tape and reel packaging format required for automated assembly processes. Ensure that the procurement channel provides traceability documentation consistent with automotive supply chain requirements. Confirm that the delivered components match the exact part number designation to avoid compatibility issues with existing design specifications.

Selection Notes

Select this component when a dual NPN configuration is required in a minimal footprint for automotive applications. Consider the 60 V voltage rating and 2 A current capacity against the load requirements. Evaluate the thermal management needs given the 510 mW power dissipation limit in the small HUSON package compared to larger discrete alternatives.

Part Context

This part belongs to onsemi's portfolio of automotive-qualified bipolar transistors designed for robust performance in vehicle electronics. The NSV60100 series represents a solution for integrating multiple switching elements into space-constrained designs. It complements other discrete and array transistors offered by the manufacturer for power management and signal switching tasks.

Replacement Considerations

Direct substitutes include the NSS60101DMTTBG and NSV60101DMTWTBG from onsemi, which share similar electrical characteristics and packaging. Verify pinout compatibility and exact parameter tolerances before substituting to ensure circuit functionality remains unaffected.
