NT3225SA-26.000000MHZ-G7

Overview

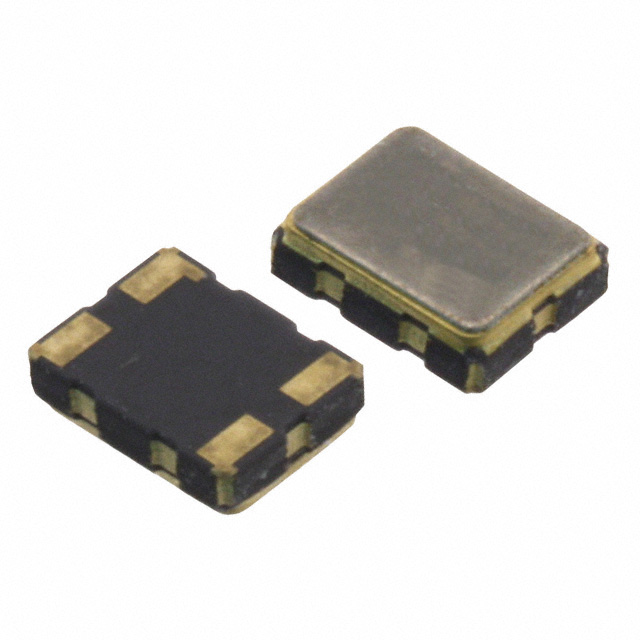

The NT3225SA-26.000000MHZ-G7 is a Voltage-Controlled Temperature-Compensated Crystal Oscillator (VCTCXO) manufactured by NDK. It operates at a nominal frequency of 26 MHz with a stability of ±2.5 ppm. The device utilizes a clipped sine wave output and requires a supply voltage of 2.75 V, drawing a maximum current of 2 mA. It is housed in a compact 4-SMD, no-lead package measuring 3.20 mm x 2.50 mm with a maximum height of 1.00 mm. The component supports an operating temperature range from -10°C to 85°C and complies with RoHS standards.

Feature Summary

• Integrates voltage control for precise frequency adjustment within the VCTCXO architecture.
• Provides high frequency stability of ±2.5 ppm across the specified operating temperature range.
• Features a compact surface-mount footprint suitable for space-constrained circuit designs.

Applications

• Precision timing circuits requiring stable clock signals
• Communication systems utilizing 26 MHz reference frequencies
• Embedded devices needing low-power oscillator solutions

Procurement Notes

Verify the specific suffix G7 against official NDK documentation to confirm pinout configuration and electrical characteristics. Ensure the design accommodates the 2.75 V supply requirement and 2 mA maximum current draw. Confirm that the clipped sine wave output is compatible with the receiving logic or circuit input specifications before integration.

Selection Notes

Select this component when a stable 26 MHz reference is required with voltage tuning capabilities. The ±2.5 ppm stability makes it suitable for applications sensitive to frequency drift. Consider the 2.75 V supply constraint and the physical dimensions of the 3.20mm x 2.50mm package during layout planning.

Part Context

This part belongs to the NT3225SA series of simple packaged crystal oscillators from NDK. The series offers various frequency options within a standardized small outline package. The NT3225SA model specifically addresses needs for temperature-compensated oscillators where size and power consumption are critical factors in system design.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative VCTCXOs based on frequency, stability, package dimensions, and supply voltage requirements.
