NUD4301MNT1G

Overview

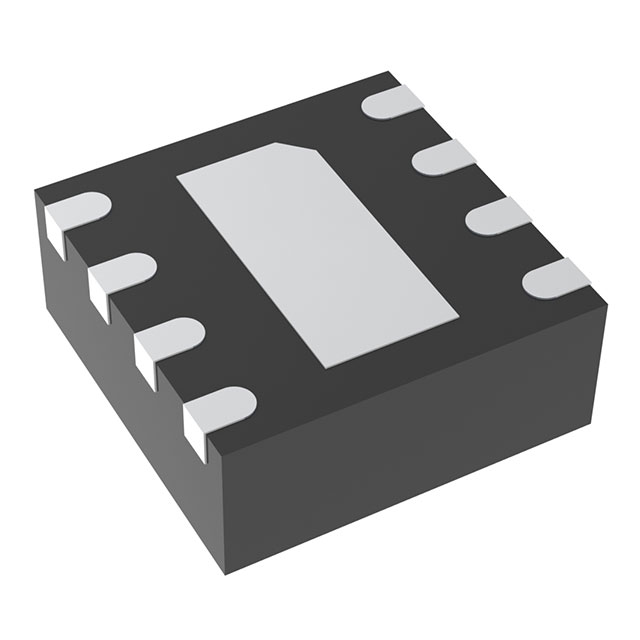

The NUD4301MNT1G is a dual low dropout voltage LED driver and current source manufactured by onsemi. Designed for low voltage DC applications up to 6 V, it serves as a replacement for switching regulators in LED driving circuits. The device features a unique integrated circuit design capable of driving external FETs to achieve higher voltage and current capabilities. It operates within a temperature range of -40 °C to +85 °C and is housed in an 8-pin DFN EP package.

Feature Summary

• Dual channel configuration for independent LED control
• Low dropout voltage architecture suitable for battery-powered systems
• Integrated capability to drive external FETs for expanded power handling

Applications

• Low voltage DC LED lighting systems
• Battery-operated portable devices requiring efficient LED drivers
• Applications replacing traditional switching regulators for simplified designs

Procurement Notes

Verify the specific suffix MNT1G against the official datasheet to confirm pinout and thermal pad specifications. Ensure the supplier provides documentation confirming RoHS compliance and material declarations. Cross-reference the manufacturer part number with the distributor's catalog to avoid confusion with similar series components or alternative packaging options.

Selection Notes

Select this component when designing low voltage LED drivers that require dual channels without the complexity of switching regulators. Consider the external FET driving capability if the application demands current levels exceeding the internal limits. Evaluate the thermal performance of the DFN EP package relative to the expected power dissipation in the target enclosure.

Part Context

This component belongs to the NUD4301 series of dual channel LED drivers from onsemi. It is categorized under power management and LED control solutions. The series is designed to offer a compact alternative to discrete switching regulator designs, focusing on efficiency and simplicity in low voltage environments.

Replacement Considerations

Direct substitutes include other dual low dropout LED drivers such as the RT9368 or SGM3131 series. Verify pin compatibility and electrical characteristics before substitution. Alternative packages may require schematic and layout modifications.
