NUF8610MNTXG

Overview

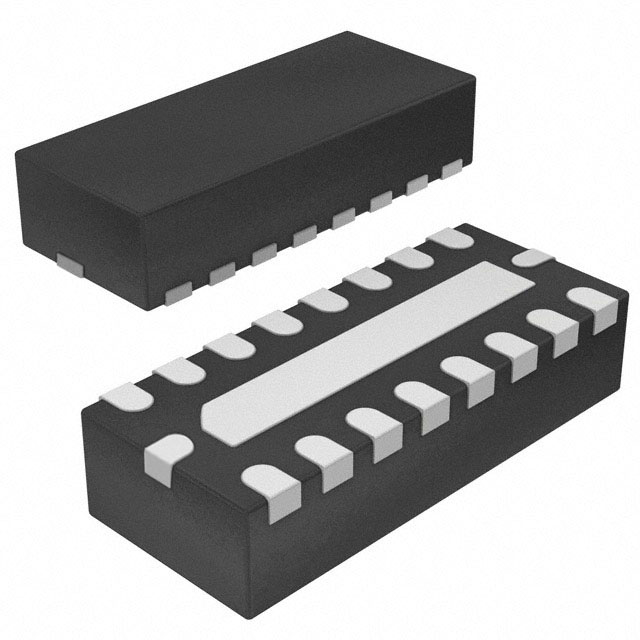

The NUF8610MNTXG is an RC (Pi) EMI filter manufactured by onsemi, designed for high-speed data line protection. It features a second-order low-pass configuration with integrated resistance and capacitance values of 50 Ohms and 8.5 pF, respectively. The component operates at a maximum voltage of 16 V and exhibits a leakage current of 100 nA. Packaged in a compact 16-VFDFN format with exposed pads, it provides efficient electromagnetic interference suppression for sensitive digital interfaces.

Feature Summary

• Integrates RC (Pi) network topology for effective second-order low-pass filtering
• Provides dedicated EMI/RFI suppression for high-speed signal lines
• Features low leakage current characteristics suitable for power-sensitive applications

Applications

• Camera data line protection
• General-purpose I/O port filtering
• Keypad interface noise suppression
• LCD display signal conditioning

Procurement Notes

Verify the specific ordering suffix to ensure the correct tape-and-reel quantity matches your assembly requirements. Confirm that the 16-VFDFN package dimensions align with your PCB footprint design. Check the latest RoHS compliance documentation to ensure adherence to regional environmental regulations. Validate the operating voltage limits against your system's maximum signal levels to prevent device stress.

Selection Notes

Select this component when designing circuits requiring compact EMI filtering for multiple data lines simultaneously. The integrated 50 Ohm resistance and 8.5 pF capacitance offer a balanced solution for impedance matching and noise reduction. Consider the 16-VFDFN package for space-constrained layouts where surface-mount assembly is preferred over through-hole alternatives.

Part Context

This part belongs to onsemi’s portfolio of passive filtering components, specifically targeting signal integrity enhancement in consumer electronics. It serves as a critical interface protection element between microcontrollers or processors and peripheral devices. The design focuses on minimizing board space while maintaining robust performance against common-mode and differential-mode noise interference.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative RC filter networks by comparing impedance characteristics and package footprints before implementation.
