Product Detailed Parameters
- Description：FILTER RC(PI) 100 OHMS ESD SMD
- Series：-
- Mfr：onsemi
- Package：Bulk
- Type：Low Pass
- Filter Order：2nd
- Technology：RC (Pi)
- Number of Channels：10
- Center / Cutoff Frequency：110MHz (Cutoff)
- Attenuation Value：-25dB @ 900MHz ~ 3GHz
- Resistance - Channel (Ohms)：100
- Values：R = 100Ohms, C = 28pF (Total)
- ESD Protection：Yes
- Operating Temperature：-40°C ~ 85°C
- Applications：Data Lines for Mobile Devices
- Voltage - Rated：-
- Mounting Type：Surface Mount

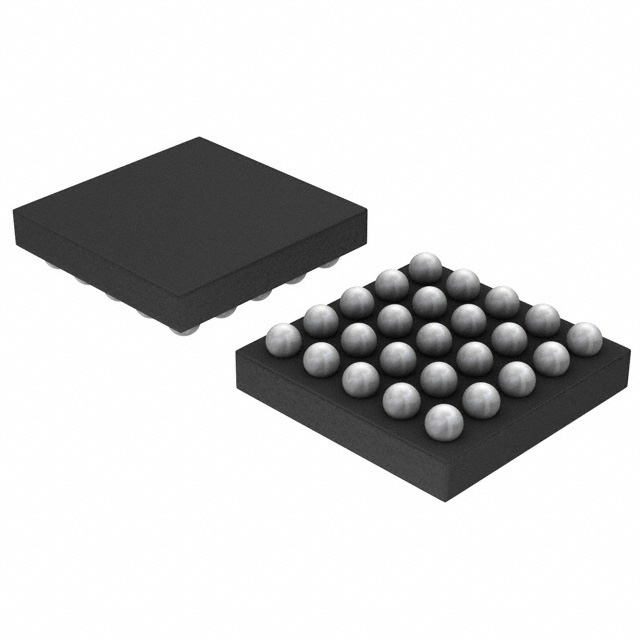

- Package / Case：25-UFBGA, FCBGA
- Size / Dimension：0.104" L x 0.104" W (2.65mm x 2.65mm)
- Height：0.026" (0.65mm)
- Current：-
- Grade：-
- Qualification：-
Download product information
Overview
The NUF9002FCT1 is a low capacitance EMI filter with integrated ESD protection, designed for high-speed data lines. It features a PI-filter topology with 100 Ohm resistance and 28 pF capacitance per line. The device supports up to 10 differential pairs or 20 single-ended lines. It operates within a temperature range of -40°C to +85°C. The component utilizes a FlipChip-25 package for surface mount assembly.
Feature Summary
- Integrates RC(PI) filtering with electrostatic discharge protection in a compact form factor
- Provides signal integrity maintenance for high-speed data interfaces through controlled impedance
- Offers robust protection against transient voltage events on multiple data lines simultaneously
Applications
- High-speed USB interface protection
- HDMI and DisplayPort signal line filtering
- Mobile device data port protection
Procurement Notes
Verify the specific suffix CT1 for packaging configuration. Confirm RoHS compliance status as indicated in official documentation. Check current lifecycle status as distribution availability may vary. Ensure the FlipChip-25 package compatibility with your PCB footprint design prior to ordering.
Selection Notes
Select this component when simultaneous EMI suppression and ESD protection are required for multi-line data buses. The 100 Ohm/28 pF specification suits standard high-speed digital interfaces. Consider the FlipChip-25 package size constraints during layout planning. Verify thermal operating limits align with the target application environment.
Part Context
This part belongs to onsemi's family of low capacitance EMI filters with ESD protection. These devices are engineered to maintain signal integrity while protecting sensitive downstream components from electrical overstress. The product line targets consumer electronics and industrial applications requiring reliable data transmission.
Replacement Considerations
Consult official substitution guides for compatible alternatives. Verify pinout and electrical parameter equivalence before replacing. Ensure package dimensions match existing board layouts. Cross-reference lifecycle status to avoid obsolescence risks.
