Product Detailed Parameters
- Description：FILTER RC(PI) 100 OHMS ESD SMD
- Series：-
- Mfr：onsemi
- Package：Bulk
- Type：Low Pass
- Filter Order：2nd
- Technology：RC (Pi)
- Number of Channels：10
- Center / Cutoff Frequency：110MHz (Cutoff)
- Attenuation Value：-25dB @ 900MHz ~ 3GHz
- Resistance - Channel (Ohms)：100
- Values：R = 100Ohms, C = 28pF (Total)
- ESD Protection：Yes
- Operating Temperature：-40°C ~ 85°C
- Applications：Data Lines for Mobile Devices
- Voltage - Rated：-
- Mounting Type：Surface Mount
- Package / Case：25-UFBGA, FCBGA
- Size / Dimension：0.104" L x 0.104" W (2.65mm x 2.65mm)
- Height：0.026" (0.65mm)
- Current：-
- Grade：-
- Qualification：-
Download product information
Overview

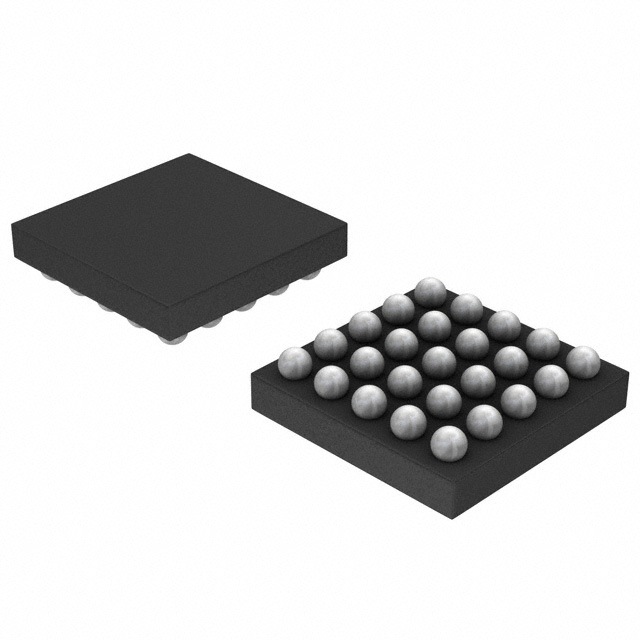

The NUF9002FCT1G is a low capacitance 10-line EMI filter with integrated ESD protection, manufactured by onsemi. It utilizes an RC Pi filter topology designed for high-speed data lines. The component features a FlipChip-25 package, suitable for surface mount applications. It operates within a temperature range of -40°C to +85°C. The device provides effective signal filtering while maintaining signal integrity in compact mobile designs.
Feature Summary
- Integrates ESD protection diodes with RC Pi filtering for combined noise suppression and surge protection
- Designed specifically for protecting multiple high-speed data lines in portable electronic devices
- Utilizes a compact FlipChip-25 package to minimize board space consumption
Applications
- Mobile phone data line protection
- Portable media player interface shielding
- Handheld communication device ESD mitigation
Procurement Notes
Verify the obsolete status of this part number before design finalization. Confirm availability through authorized distributors or secondary markets. Ensure replacement components meet identical electrical specifications and pin compatibility. Check for RoHS compliance documentation if required for specific regional regulations. Validate supply chain stability for long-term production needs.
Selection Notes
Select this component when multi-line ESD protection and EMI filtering are required in a single footprint. Consider the low capacitance specification for high-speed data interfaces where signal integrity is critical. Evaluate the FlipChip-25 package dimensions against available PCB real estate. Compare performance metrics against alternative filters for similar application requirements.
Part Context
This component belongs to onsemi's family of EMI filters with ESD protection. It is categorized under ESD suppressors and TVS diodes. The product line targets consumer electronics requiring robust protection for sensitive data interfaces. Similar parts in the series offer varying line counts and capacitance values.
FAQ
What is the filter topology used in the NUF9002FCT1G?
The NUF9002FCT1G uses an RC Pi filter topology.
How many data lines does this component protect?
It provides protection for 10 data lines.
