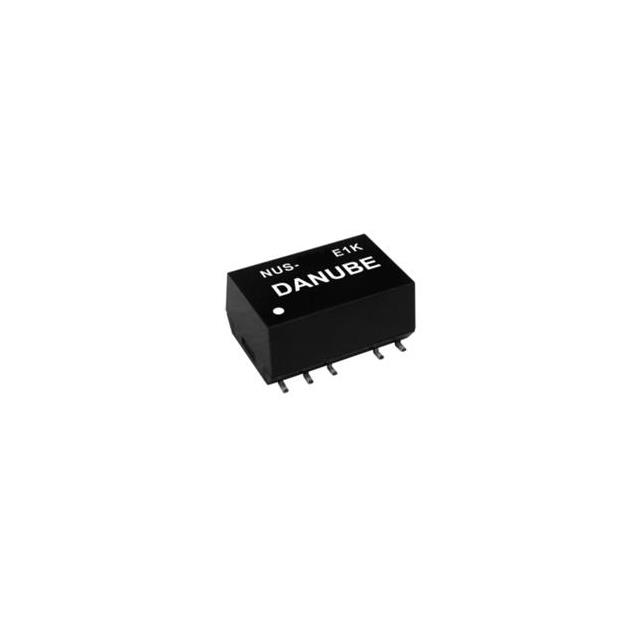

NUS-0505E1K

NUS-0505E1K is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Diwell Electronics. Its product description is DC DC CONVERTER 5V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for NUS-0505E1K

• Description：DC DC CONVERTER 5V 1W
• Series：NU-E1K (1W)
• Mfr：Diwell Electronics
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：200mA
• Power (Watts)：1 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C
• Efficiency：77%
• Mounting Type：Surface Mount
• Package / Case：12-SMD Module, 10 Leads
• Size / Dimension：0.60" L x 0.43" W x 0.28" H (15.2mm x 10.9mm x 7.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for NUS-0505E1K
