NUS3065MUTAG

Overview

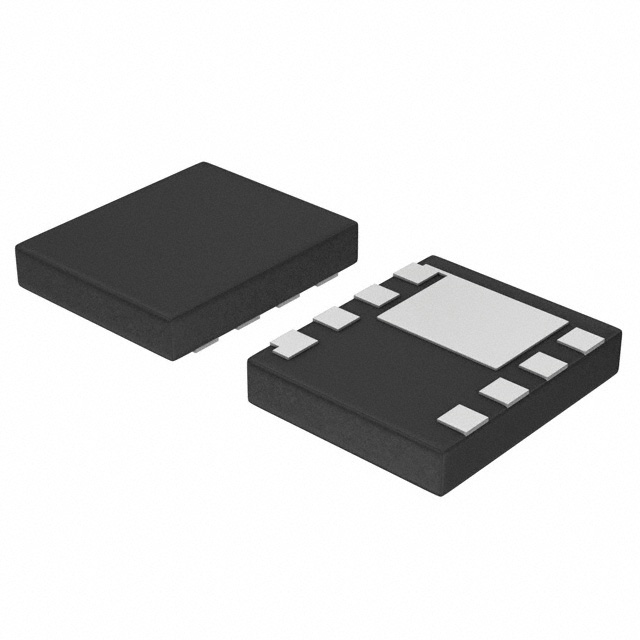

The NUS3065MUTAG is a low-profile overvoltage protection integrated circuit manufactured by onsemi. It belongs to the PMIC category and features an integrated MOSFET for efficient power handling. The device operates within a supply voltage range of 3V to 25V and draws a supply current of 750µA. Designed for robust performance, it supports an operating temperature range from -40°C to 85°C. The component is housed in an 8-LLGA (3x2.5) package with exposed pads, suitable for surface mount installation.

Feature Summary

• Integrates overvoltage protection logic with a dedicated power MOSFET
• Provides low-profile packaging for space-constrained designs
• Operates across a wide industrial temperature range

Applications

• Overvoltage protection circuits
• Power management systems requiring compact footprints

Procurement Notes

Verify component authenticity through authorized channels as this part is marked as obsolete. Check datasheet revisions for any parameter updates. Confirm package dimensions match design requirements. Ensure thermal dissipation plans account for the specific LLGA footprint. Validate that the integrated MOSFET ratings meet system stress conditions.

Selection Notes

Select this component when integrated overvoltage protection and MOSFET switching are required in a minimal footprint. Consider the 3V to 25V input range compatibility. Evaluate the 750µA supply current against system power budgets. Assess the 8-LLGA package suitability for automated assembly processes and thermal management needs.

Part Context

This part is a variant of the NUS3065 series, specifically the NUS3065MU with the TAG suffix indicating tape and reel packaging. It serves as a specialized power management solution focusing on transient voltage suppression. The integration reduces external component count compared to discrete solutions.

Replacement Considerations

NUS3065MU
