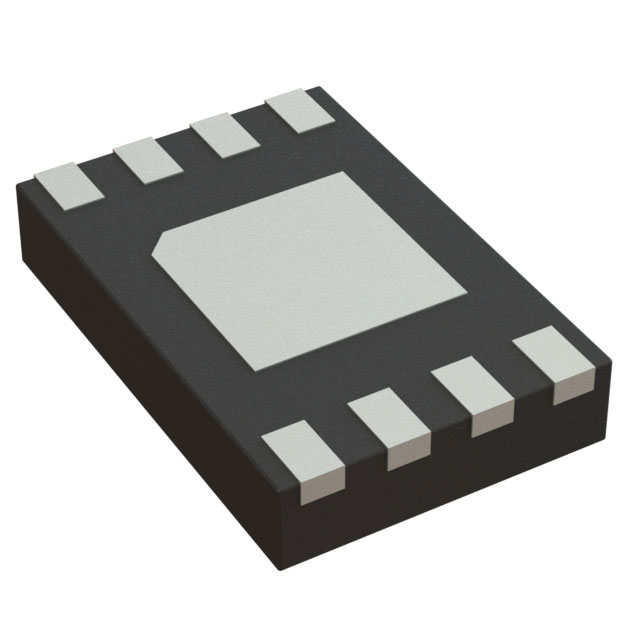

NV24C32MUW3VLTBG is listed in the Memory IC range at ChipApex. The manufacturer field lists onsemi. Its product description is IC EEPROM 32KBIT I2C 1MHZ 8UDFN. Review the specifications below when checking this part for your BOM.
Memory IC specifications for NV24C32MUW3VLTBG
- Description：IC EEPROM 32KBIT I2C 1MHZ 8UDFN
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Cut Tape (CT)
- Memory Type：Non-Volatile
- Memory Format：EEPROM
- Technology：EEPROM
- Memory Size：32Kbit
- Memory Organization：4K x 8
- Memory Interface：I2C
- Clock Frequency：1 MHz
- Write Cycle Time - Word, Page：4ms
- Voltage - Supply：1.7V ~ 5.5V
- Operating Temperature：-40°C ~ 125°C (TA)
- Mounting Type：Surface Mount
- Package / Case：8-UFDFN Exposed Pad
- Supplier Device Package：8-UDFN (2x3)
- Access Time：400 ns
- Grade：Automotive
- Qualification：AEC-Q100
Memory IC datasheet and documents for NV24C32MUW3VLTBG
Memory IC Overview
The NV24C32MUW3VLTBG is a 32-kbit serial EEPROM from onsemi, organized as 4K x 8 bits. It features an I2C interface with a maximum clock frequency of 1 MHz. The device operates within a supply voltage range of 1.7 V to 5.5 V and supports surface mount installation in an 8-UDFN (2x3) package with wettable flanks. It is qualified to AEC-Q100 standards for automotive applications, ensuring reliability under harsh conditions.
Memory IC Feature Summary
- AEC-Q100 qualified for automotive grade reliability
- Supports high-speed 1 MHz I2C communication
- Operates across extended temperature ranges up to 125°C
- Includes wettable flank technology for enhanced solder joint inspection
Memory IC Applications
- Automotive electronic control units requiring non-volatile data storage
- Industrial systems needing reliable configuration memory
- Consumer electronics utilizing low-voltage power supplies
Memory IC Procurement Notes
Verify the specific suffix '3VLTBG' against official datasheets to confirm the 1.7 V minimum operating voltage and UDFN-8 wettable flank package. Ensure compatibility with I2C bus protocols and check for RoHS compliance documentation prior to integration into production designs.
Memory IC Selection Notes
Select this component when automotive qualification and low-voltage operation are required. The 1 MHz speed offers faster access than standard 400 kHz variants. The UDFN-8 footprint provides space efficiency compared to larger packages like SOIC or TSSOP.
Memory IC Part Context
This part belongs to the NV24Cxx family of serial EEPROMs designed for high-density data storage. It shares architectural similarities with other members like the NV24C16 and NV24C64 but differs in capacity and specific electrical characteristics defined by its unique ordering suffix.
Memory IC Replacement Considerations
Direct substitutes include NV24C32DWVLT3G (SOIC-8 package) or NV24C32MUW3VTBG (standard UDFN without wettable flanks). Verify pinout compatibility and voltage specifications before swapping.
