NX1255GB-4.000000MHZ

Overview

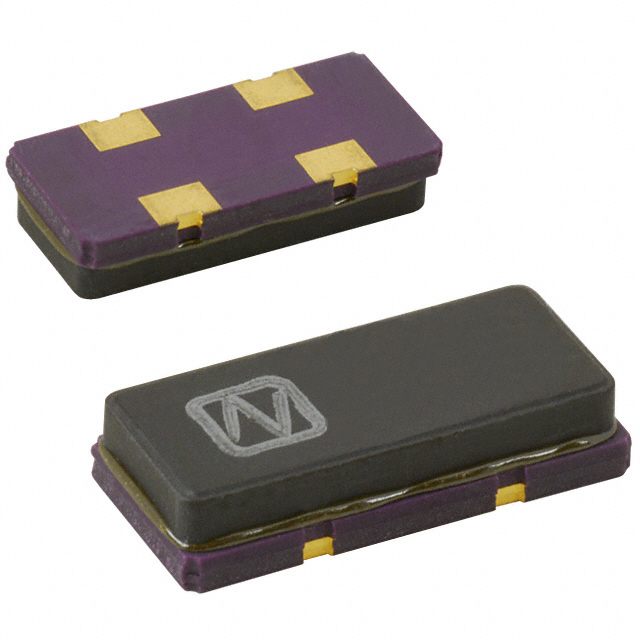

The NX1255GB-4.000000MHZ is a surface-mount MHz crystal manufactured by NDK (NIHON DEMPA KOGYO CO., LTD). It operates at a nominal frequency of 4.000000 MHz with a frequency stability of ±50ppm. The component features a load capacitance of 12pF and an equivalent series resistance of 120 Ohms. It is designed for an operating temperature range of -10°C to +70°C. The device utilizes a 4-SMD, No Lead package configuration.

Feature Summary

• Surface-mount design for automated assembly
• Lead-free construction compliant with environmental standards
• Stable frequency performance within specified industrial temperature limits

Applications

• General-purpose clock signal generation in electronic circuits
• Microcontroller system timing references
• Industrial control equipment requiring standard frequency stability

Procurement Notes

Verify current availability status as the product may be discontinued or subject to supply constraints. Confirm that the specific ordering suffix matches the required frequency tolerance and package variant. Ensure compatibility with existing PCB footprint designs. Check for any regional tariff implications if shipping to the United States. Request official datasheets for final electrical parameter validation before integration.

Selection Notes

Select this component when a 4 MHz reference signal is required for SMD-based designs. Consider the ±50ppm stability limit against system timing requirements. Evaluate the -10°C to +70°C operating range against environmental conditions. Compare the 12pF load capacitance with oscillator circuit specifications. Assess the 120 Ohm ESR against driver strength capabilities.

Part Context

This part belongs to the NX1255GB series of crystals from NDK. The series focuses on compact surface-mount solutions for consumer and industrial electronics. NDK manufactures these components using quartz crystal technology. The company maintains production facilities in Japan, China, Malaysia, and the United States. This specific model represents a standard frequency option within the broader product line.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference data through official manufacturer channels. Ensure any alternative component matches the 4-SMD, No Lead package dimensions. Confirm identical electrical parameters including 12pF load capacitance and 120 Ohm ESR. Validate frequency stability and temperature range compliance.
