Product Detailed Parameters
- Description：IC PWR SWITCH 1:1 42WLCSP
- Series：-
- Mfr：NXP USA Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Switch Type：USB Switch
- Number of Outputs：1
- Ratio - Input:Output：1:01
- Output Configuration：-
- Output Type：-
- Interface：I2C
- Voltage - Load：2.8V ~ 20V
- Voltage - Supply (Vcc/Vdd)：-
- Current - Output (Max)：5A
- Rds On (Typ)：28mOhm
- Input Type：-
- Features：Slew Rate Controlled
- Fault Protection：Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount

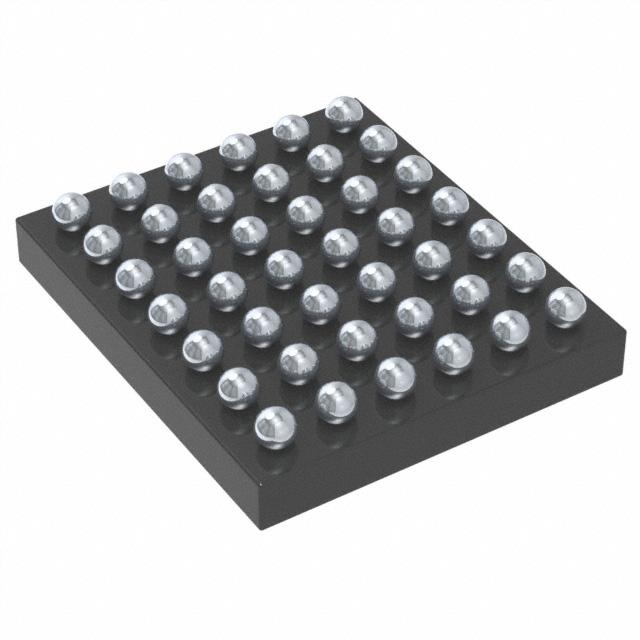

- Supplier Device Package：42-WLCSP (2.91x2.51)
- Package / Case：42-UFBGA, WLCSP
- Grade：-
- Qualification：-
Download product information
Overview
The NX20P3483UKAZ is a USB PD and Type-C high-voltage sink/source combo switch with protection, manufactured by NXP Semiconductors. It operates within a supply voltage range of 2.7 V to 5.5 V and supports a working power current of 3.4 A. The device complies with USB-C 3.0 standards and features an I2C interface for control. It is housed in a WLCSP-42 package suitable for SMD/SMT installation. The component functions reliably across an operating temperature range from -40 °C to +85 °C.
Feature Summary
- Integrates high-voltage sink and source switching capabilities for USB Power Delivery applications
- Includes built-in protection mechanisms for system safety
- Supports bidirectional power flow management via I2C interface
Applications
- Smartphone power management systems
- USB Type-C wall plug chargers
- Power adapter designs requiring secure charging solutions
Procurement Notes
Verify the complete part number including the suffix AZ against official NXP documentation to ensure correct packaging and material declaration compliance. Confirm RoHS and halogen-free status requirements match project specifications. Check moisture sensitivity level and peak reflow temperature limits during assembly planning to prevent package damage. Ensure the supplier provides valid certificates of analysis for quality assurance.
Selection Notes
Select this component when designing USB Type-C interfaces requiring combined sink and source switching functionality. It is suitable for applications needing high-voltage tolerance and integrated protection features. Consider the WLCSP-42 package constraints for PCB layout. Verify that the I2C control interface aligns with the host controller's available bus lines and voltage levels.
Part Context
This device belongs to the NX20P3483UK series of USB interface ICs designed for power delivery applications. It complements other NXP solutions like the NX20P5090UK for unidirectional switching or NX20P0407 for CC/SBU protection. The series targets mobile devices and chargers, offering compact integration for modern USB-C ecosystems.
Replacement Considerations
NX20P3483AUKAZ is listed as a related variant within the same family. Verify functional equivalence and pin compatibility before substitution. No other direct public substitutes are confirmed.
