NX4025DA-13.000000MHZ-B6

Overview

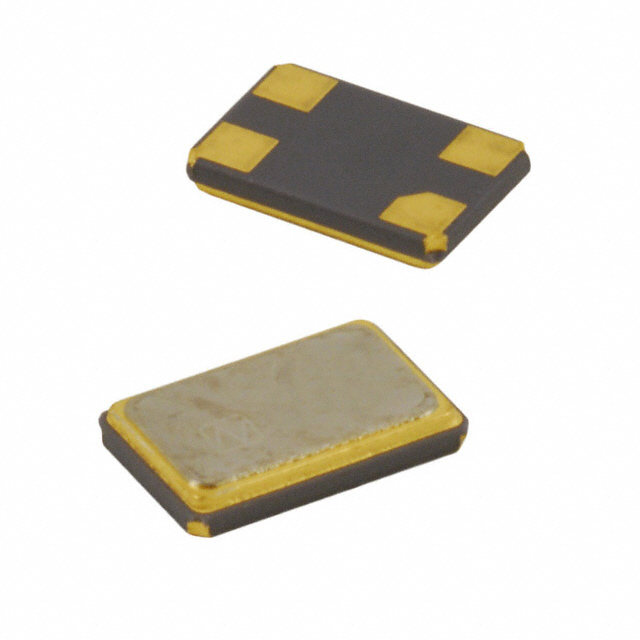

The NX4025DA-13.000000MHZ-B6 is a fundamental mode quartz crystal unit manufactured by NDK, designed for surface-mount applications. It operates at a nominal frequency of 13 MHz with a frequency tolerance and stability of ±10 ppm. The component features a load capacitance of 10 pF and an equivalent series resistance (ESR) of 60 Ohms. It supports a drive level of up to 10 μW, with a maximum limit of 100 μW. The device functions within an operating temperature range of -20°C to +70°C. Its physical dimensions are 4.0 mm in length, 2.5 mm in width, and approximately 0.6 mm in height, housed in a 4-SMD, no-lead package.

Feature Summary

• Ultra-compact and thin surface-mount design compatible with mobile phone handsets and Bluetooth base clock frequencies.
• Excellent electrical performance optimized for mobile communication and Bluetooth applications.
• Superior environmental characteristics, including high heat and shock resistance.
• Lead-free construction compliant with lead-free solder reflow profiling requirements.

Applications

• Mobile phone handset base clock generation
• Bluetooth module frequency reference
• Mobile communications equipment
• Compact electronic devices requiring small form factor crystals

Procurement Notes

Verify the specific ordering code suffix, as variations such as B5 or B6 may indicate different packaging or minor specification adjustments not explicitly detailed in general datasheets. Confirm that the required load capacitance matches the circuit design, as standard models typically specify 10 pF but custom values are available upon request. Ensure the drive level constraints are respected during PCB layout to maintain oscillation reliability and prevent frequency drift or damage to the resonator element.

Selection Notes

Select this component when space constraints require a 4.0 x 2.5 mm footprint for Bluetooth or mobile applications. Verify that the system's oscillator circuit can support the specified 10 pF load capacitance and 60 Ohm ESR. Consider the -20°C to +70°C temperature range against the operational environment; if wider ranges are needed, consult NDK for custom temperature characteristics. Ensure the application drive level remains within the 10 μW standard recommendation to guarantee long-term stability.

Part Context

This part belongs to the NX4025DA series, a line of crystal units specifically engineered for mobile communications and Bluetooth technologies. The series is characterized by its ultra-compact size and robust environmental resilience. While the NX4025DA-13.000000MHZ-B6 represents a standard configuration, NDK offers customizable specifications for load capacitance and temperature characteristics. The series supports frequencies typically ranging from 12 to 32 MHz, making it suitable for various base clock requirements in portable electronics.

Replacement Considerations

CS00530-16M by NDK is listed as a substitute option in distributor databases, though frequency differences must be evaluated. Direct pin-compatible replacements should be verified against the 4-SMD no-lead package dimensions and 10 pF load capacitance requirement. Custom orders from NDK may provide identical electrical parameters with adjusted suffixes for packaging or specific customer requirements.
