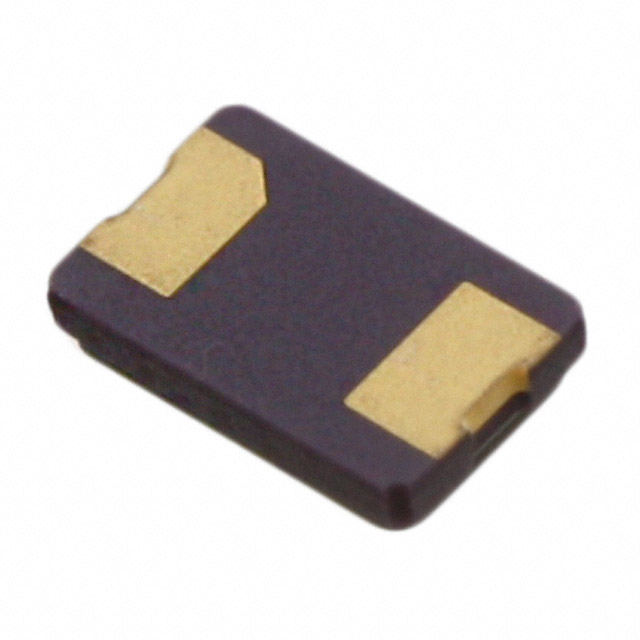

NX5032GB-12MHZ-STD-CSK-5

$0.39

Description：CRYSTAL 12.0000MHZ 8PF SMD
Series：NX5032GB
Mfr：NDK (NIHON DEMPA KOGYO CO., LTD)
Package：Tape & Reel (TR)

SKU:985600318601 Category: Crystals Brand: NDK (NIHON DEMPA KOGYO CO., LTD)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CRYSTAL 12.0000MHZ 8PF SMD
Series：NX5032GB
Mfr：NDK (NIHON DEMPA KOGYO CO., LTD)
Package：Tape & Reel (TR)
Type：MHz Crystal
Frequency：12 MHz
Frequency Stability：±30ppm
Frequency Tolerance：±20ppm
Load Capacitance：8pF
ESR (Equivalent Series Resistance)：100 Ohms
Operating Mode：Fundamental
Operating Temperature：-10°C ~ 70°C
Ratings：-
Mounting Type：Surface Mount
Package / Case：2-SMD, No Lead
Supplier Device Package：-
Size / Dimension：0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max)：0.047" (1.20mm)

Download product information

NX5032GB-12MHZ-STD-CSK-5

Overview

The NX5032GB-12MHZ-STD-CSK-5 is a surface-mount fundamental mode crystal manufactured by NDK. It operates at a nominal frequency of 12 MHz with a frequency tolerance of ±20 ppm and a load capacitance of 8 pF. The component features an equivalent series resistance (ESR) of 100 Ohms and is housed in a compact 2-SMD, No Lead package measuring 5.00 mm x 3.20 mm with a maximum height of 1.20 mm. Designed for commercial applications, it supports a standard operating temperature range of -10°C to +70°C.

Feature Summary

Compact 5.0x3.2mm SMD footprint suitable for space-constrained designs
Fundamental oscillation mode operation
Lead-free soldering compatibility

Applications

Office automation equipment
Audio/Video devices
Automotive accessories

Procurement Notes

Verify the specific suffix STD-CSK-5 against official documentation to confirm the exact electrical parameters, particularly the ESR value of 100 Ohms and the commercial temperature rating. Ensure the design accounts for the 8 pF load capacitance requirement. Confirm availability status as this part number may be subject to discontinuation notices within the NX5032G family.

Selection Notes

Select this component when a 12 MHz clock source is required for commercial-grade applications with limited board space. The 1.20 mm height profile distinguishes it from the thicker NX5032GA variant. Consider the 100 Ohm ESR for oscillator circuit gain matching. Verify that the -10°C to +70°C operating range meets the environmental requirements of the target application.

Part Context

This part belongs to the NX5032GB series, which offers a thinner profile compared to the standard NX5032GA series. While the NX5032GA provides industrial and automotive grades, the GB series focuses on commercial specifications. This specific model represents a 12 MHz fundamental frequency option within the 5032 form factor optimized for consumer electronics.
