Product Detailed Parameters
- Description：CRYSTAL 12.0000MHZ 8PF SMD
- Series：NX5032GC
- Mfr：NDK (NIHON DEMPA KOGYO CO., LTD)
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：MHz Crystal
- Frequency：12 MHz
- Frequency Stability：±15ppm
- Frequency Tolerance：±15ppm
- Load Capacitance：8pF
- ESR (Equivalent Series Resistance)：100 Ohms
- Operating Mode：Fundamental
- Operating Temperature：-10°C ~ 75°C
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：4-SMD, No Lead
- Supplier Device Package：-
- Size / Dimension：0.197" L x 0.126" W (5.00mm x 3.20mm)
- Height - Seated (Max)：0.047" (1.20mm)
Download product information
Overview

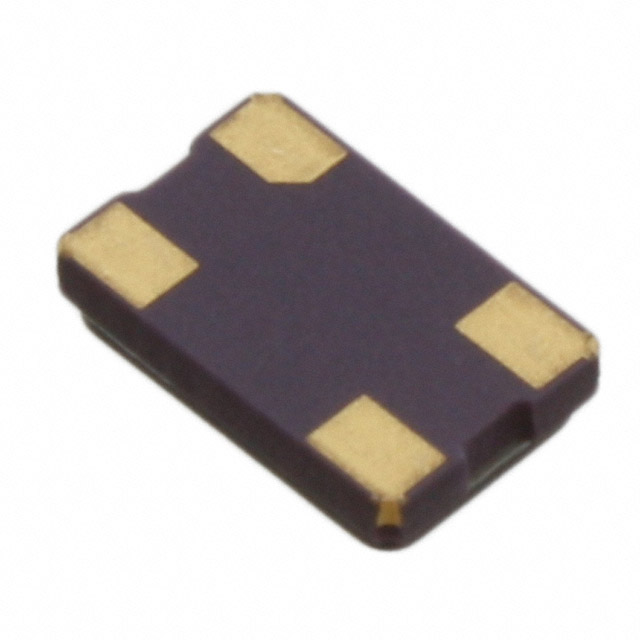

The NX5032GC-12MHZ-STD-CSK-6 is a surface-mount crystal oscillator manufactured by NDK. It operates at a nominal frequency of 12 MHz with a load capacitance of 8 pF. The component features a frequency tolerance of ±15 ppm and an operating temperature range of -10°C to +75°C. It utilizes a 4-SMD, no-lead package with dimensions of 5.0 mm in length, 3.2 mm in width, and a maximum height of 1.3 mm. The device supports fundamental mode operation and meets RoHS standards.
Feature Summary
- Compact 5032 SMD footprint suitable for space-constrained designs
- High frequency stability with ±15 ppm tolerance
- Compliant with lead-free reflow soldering processes
Applications
- OA and office equipment clock sources
- AV audio/video device timing circuits
- Automotive peripheral accessory modules
Procurement Notes
Verify the specific ordering suffix STD-CSK-6 against project requirements to ensure compatibility with the intended thermal profile and environmental specifications. Confirm that the 8 pF load capacitance aligns with the host circuit design. Check current availability status as supply levels may fluctuate. Ensure the selected variant matches the required frequency tolerance and temperature range for the final application environment.
Selection Notes
Select this component when a balance of high precision and compact size is required for consumer or automotive electronics. The ±15 ppm tolerance offers superior stability compared to standard commercial grades. Consider the -10°C lower temperature limit; if wider industrial ranges are needed, evaluate alternative series such as NX5032GA. Ensure the PCB layout accommodates the 5.0x3.2 mm pad configuration.
Part Context
This part belongs to the NX5032 series of crystals designed by NDK for small form-factor applications. The GC sub-series typically denotes specific performance characteristics within the 5032 package family. It serves as a timing reference for microcontrollers and communication interfaces in portable and embedded systems where size and reliability are critical factors.
Replacement Considerations
NX5032GA-12.000000MHZ-STD-CSK-4
FAQ
What is the maximum operating temperature for this crystal?
The maximum operating temperature is +75°C.
Does this component support lead-free soldering?
Yes, it is compliant with lead-free reflow soldering processes.
