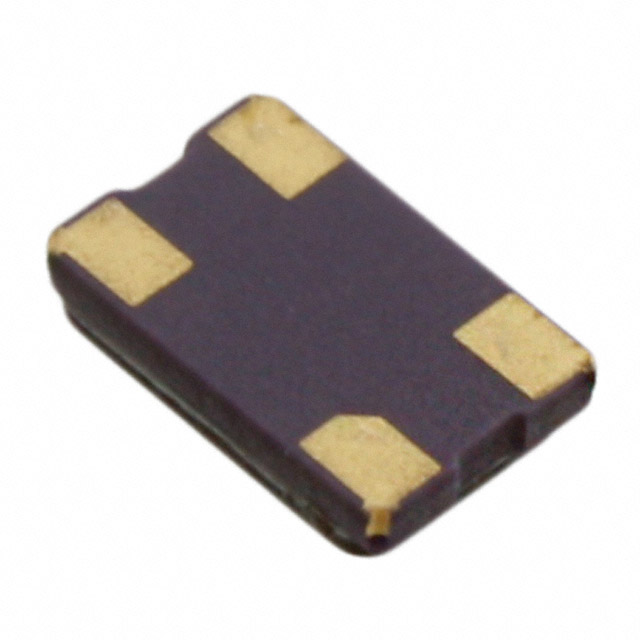

NX5032GC-16MHZ-STD-CSK-6

$0.64

Description：CRYSTAL 16.0000MHZ 8PF SMD
Series：NX5032GC
Mfr：NDK (NIHON DEMPA KOGYO CO., LTD)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:fad847a146ef Category: Crystals Brand: NDK (NIHON DEMPA KOGYO CO., LTD)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CRYSTAL 16.0000MHZ 8PF SMD
Series：NX5032GC
Mfr：NDK (NIHON DEMPA KOGYO CO., LTD)
Package：Tape & Reel (TR),Cut Tape (CT)
Type：MHz Crystal
Frequency：16 MHz
Frequency Stability：±15ppm
Frequency Tolerance：±15ppm
Load Capacitance：8pF
ESR (Equivalent Series Resistance)：50 Ohms
Operating Mode：Fundamental
Operating Temperature：-10°C ~ 75°C
Ratings：-
Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Supplier Device Package：-
Size / Dimension：0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max)：0.047" (1.20mm)

Download product information

NX5032GC-16MHZ-STD-CSK-6

Overview

The NX5032GC-16MHZ-STD-CSK-6 is a surface-mount crystal unit manufactured by NDK. It operates at a nominal frequency of 16 MHz with a frequency tolerance of ±20 ppm and stability of ±30 ppm. The component features an 8 pF load capacitance and an equivalent series resistance (ESR) of 50 Ohms. Designed for base mode operation, it utilizes a 2-SMD, no-lead package measuring 5.00 mm x 3.20 mm with a maximum height of 1.20 mm. The device supports a commercial operating temperature range of -10°C to +70°C.

Feature Summary

Supports base mode oscillation for standard clock generation applications
Complies with RoHS 2.0 environmental standards and lead-free reflow soldering processes
Utilizes a compact 2-SMD footprint suitable for space-constrained printed circuit boards

Applications

Office automation equipment such as printers and scanners
Audio/Video consumer devices requiring stable clock signals
Automotive peripheral accessories outside safety-critical domains

Procurement Notes

Verify the specific ordering suffix against official NDK documentation to ensure correct performance grade. Confirm that the required load capacitance matches the circuit design specifications. Check the latest datasheet for any manufacturing changes or obsolescence notices prior to finalizing procurement orders.

Selection Notes

Select this component when a 16 MHz frequency with ±20 ppm tolerance is required within a commercial temperature range. Ensure the application environment remains between -10°C and +70°C. Verify that the circuit can accommodate the specified 50 Ohm ESR value for proper oscillator gain margins.

Part Context

This part belongs to the NX5032G series, which includes variants like NX5032GA and NX5032GB. These components are optimized for OA and AV equipment. The GC variant specifically denotes the performance grade associated with the STD-CSK-6 suffix, distinguishing it from industrial wide-temperature options in the same family.
