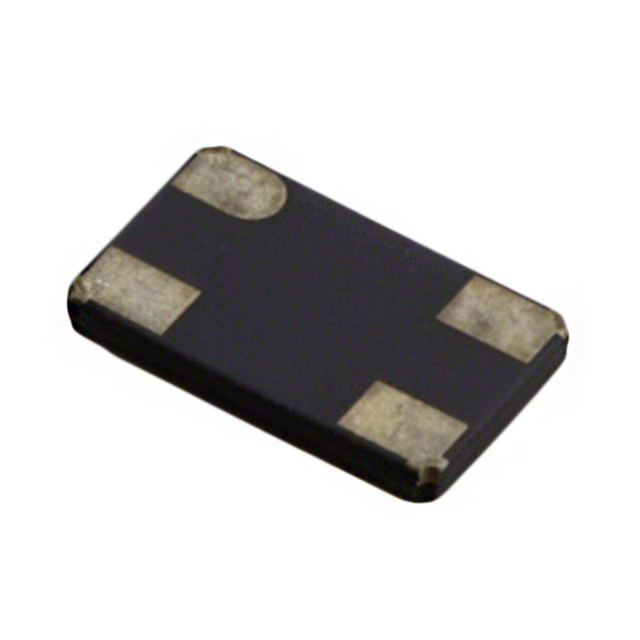

NX5032SD-9.84375M-STD-CSY-1

$0.61

Description：CRYSTAL 9.84375MHZ 12PF SMD
Series：NX3225SC
Mfr：NDK (NIHON DEMPA KOGYO CO., LTD)
Package：Tape & Reel (TR)

SKU:3d3aca3c533a Category: Crystals Brand: NDK (NIHON DEMPA KOGYO CO., LTD)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CRYSTAL 9.84375MHZ 12PF SMD
Series：NX3225SC
Mfr：NDK (NIHON DEMPA KOGYO CO., LTD)
Package：Tape & Reel (TR)
Type：MHz Crystal
Frequency：9.84375 MHz
Frequency Stability：±50ppm
Frequency Tolerance：±15ppm
Load Capacitance：12pF
ESR (Equivalent Series Resistance)：150 Ohms
Operating Mode：Fundamental
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Supplier Device Package：-
Size / Dimension：0.193" L x 0.122" W (4.90mm x 3.10mm)
Height - Seated (Max)：0.039" (1.00mm)

Download product information

NX5032SD-9.84375M-STD-CSY-1

Overview

The NX5032SD-9.84375M-STD-CSY-1 is a surface-mount MHz crystal manufactured by NDK, designed for automotive applications. It operates at a nominal frequency of 9.84375MHz with a fundamental operating mode. The component features a load capacitance of 12pF and an equivalent series resistance (ESR) of 150 Ohms maximum. Frequency tolerance is specified at ±15ppm at +25°C, with stability of ±50ppm across the temperature range of -40°C to +125°C. It carries AEC-Q200 ratings and utilizes a 4-SMD, No Lead package.

Feature Summary

Complies with AEC-Q200 qualification standards for automotive electronic components
Supports operation in wide temperature environments ranging from -40°C to +125°C
Utilizes a compact surface-mount package suitable for automated assembly processes

Applications

Automotive Tire Pressure Monitoring Systems (TPMS)
Automotive clock circuits
Microcontroller system clocks in automotive modules

Procurement Notes

Verify that the specific ordering suffix corresponds to the required load capacitance and tolerance grade. Confirm the package dimensions match the PCB footprint requirements. Ensure the supplier provides documentation confirming AEC-Q200 compliance for automotive quality assurance purposes.

Selection Notes

Select this component when automotive-grade reliability is required alongside a specific 9.84375MHz frequency. Consider the 12pF load capacitance for circuit matching. Evaluate the ESR value against the oscillator circuit design to ensure stable startup conditions within the specified temperature range.

Part Context

This part belongs to the NX5032SD series, which is specifically engineered for automotive electronics. The series emphasizes high frequency stability and thermal endurance compared to standard commercial crystals. It represents NDK's focus on providing qualified components for safety-critical and long-life automotive systems.
