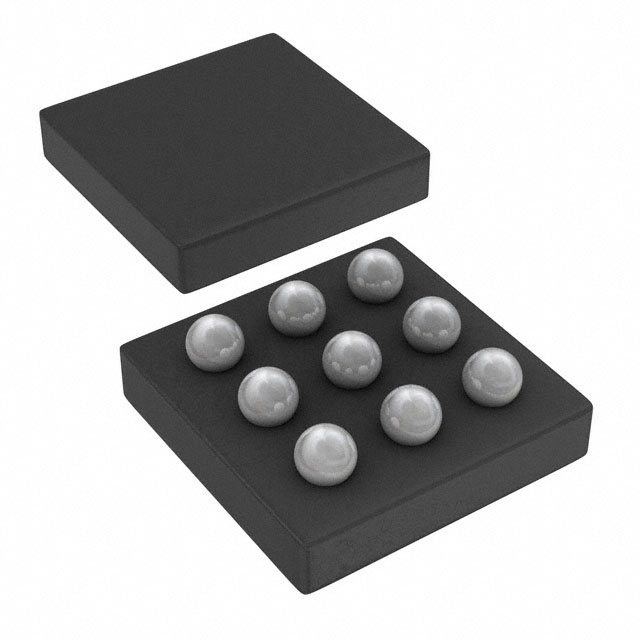

NX5P2190UKZ

Description：IC PWR SWITCH N-CHAN 1:1 9WLCSP
Series：NX5
Mfr：NXP USA Inc.
Package：Tape & Reel (TR)

SKU:d4b91f88b0e0 Category: Power Distribution Switches, Load Drivers Brand: NXP USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC PWR SWITCH N-CHAN 1:1 9WLCSP
Series：NX5
Mfr：NXP USA Inc.
Package：Tape & Reel (TR)
Switch Type：General Purpose
Number of Outputs：1
Ratio - Input:Output：1:01
Output Configuration：High Side
Output Type：N-Channel
Interface：On/Off
Voltage - Load：3V ~ 5.5V
Voltage - Supply (Vcc/Vdd)：Not Required
Current - Output (Max)：2A
Rds On (Typ)：60mOhm
Input Type：Non-Inverting
Features：Slew Rate Controlled
Fault Protection：Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Supplier Device Package：9-WLCSP (1.36x1.36)
Package / Case：9-UFBGA, WLCSP
Grade：-
Qualification：-

Download product information

NX5P2190UKZ

Overview

The NX5P2190UKZ is a logic-controlled high-side power switch designed for 3 V to 5.5 V applications. It features an integrated P-channel MOSFET capable of handling up to 2 A continuous current with a maximum on-resistance of 100 mΩ at 4.0 V. The device includes adjustable current limiting via the ILIM pin, soft-start functionality, and comprehensive protection circuits such as over-temperature, over-voltage lockout, under-voltage lockout, reverse bias, and surge current protection. An open-drain fault output signals errors, while the enable input supports low-power mode operation.

Feature Summary

Integrated adjustable current limiting and soft-start control
Comprehensive protection against over-current, over-temperature, and reverse bias
Low-power mode with typical ground current of 20 μA
Compatible with low-voltage control logic

Applications

USB OTG applications
Consumer electronics
Power adapters and chargers

Procurement Notes

Verify component authenticity through authorized NXP distributors or direct channels. Confirm package integrity and marking accuracy upon receipt. Check datasheet revisions for any updates to electrical characteristics or recommended operating conditions. Ensure storage and handling comply with moisture sensitivity level requirements specified in the manufacturing data sheet.

Selection Notes

Select this component for designs requiring precise current management and robust fault protection in 3 V to 5.5 V systems. The adjustable ILIM pin allows customization of over-current thresholds. Consider the 100 mΩ on-resistance for efficiency calculations. Verify compatibility with system voltage levels and thermal requirements before integration into the final product design.

Part Context

The NX5P2190 series belongs to NXP's portfolio of logic-controlled high-side power switches. These devices are engineered for portable electronics and USB interfaces, offering compact solutions for power domain isolation. The UKZ suffix typically denotes specific packaging or environmental compliance variations within the standard NX5P2190 family.
