NX5P2924CUKZ

Description：IC PWR SWITCH N-CHAN 1:1 6WLCSP
Series：NX5
Mfr：NXP USA Inc.
Package：Tape & Reel (TR)

SKU:89c61c2ce0d7 Category: Power Distribution Switches, Load Drivers Brand: NXP USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC PWR SWITCH N-CHAN 1:1 6WLCSP
Series：NX5
Mfr：NXP USA Inc.
Package：Tape & Reel (TR)
Switch Type：General Purpose
Number of Outputs：1
Ratio - Input:Output：1:01
Output Configuration：High Side
Output Type：N-Channel
Interface：On/Off
Voltage - Load：0.8V ~ 5.5V
Voltage - Supply (Vcc/Vdd)：Not Required
Current - Output (Max)：2.5A
Rds On (Typ)：18mOhm
Input Type：Non-Inverting
Features：Load Discharge, Slew Rate Controlled
Fault Protection：Reverse Current
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Supplier Device Package：6-WLCSP (0.87x1.37)
Package / Case：6-XFBGA, WLCSP
Grade：-
Qualification：-

Download product information

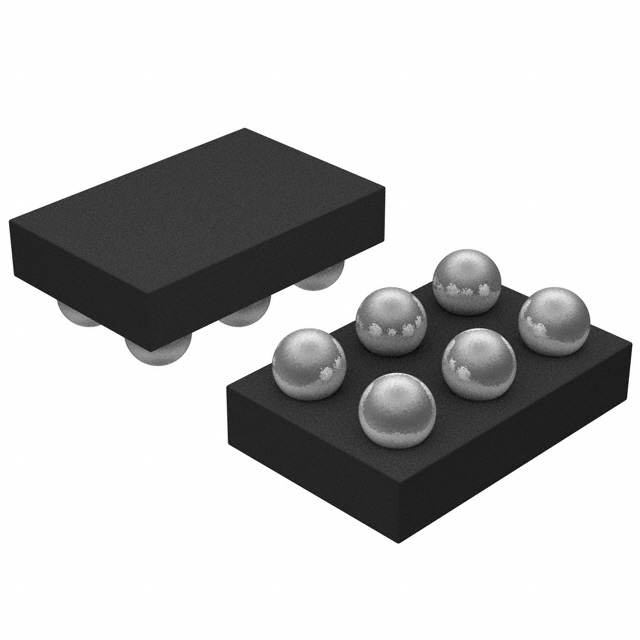

NX5P2924CUKZ

Overview

The NX5P2924CUKZ is a logic-controlled high-side power switch manufactured by NXP. It features an N-channel output with a maximum continuous current of 2.5A and a typical on-resistance of 18 milliohms. The device supports an input voltage range from 0.8V to 5.5V and operates within a temperature range of -40°C to 85°C. Packaged in a compact 6-WLCSP (0.87x1.37 mm) format, it includes integrated reverse current protection and controlled slew rate capabilities for efficient power distribution.

Feature Summary

Logic-controlled high-side power switching architecture
Integrated reverse current protection circuitry
Controlled slew rate functionality to minimize transient noise

Applications

Smartphone power management systems
Portable electronic device load switching
Point-of-load power distribution designs

Procurement Notes

Verify component authenticity through authorized NXP distributors or certified supply chain partners. Confirm package integrity and marking consistency against official datasheet specifications. Ensure storage conditions comply with moisture sensitivity level requirements prior to assembly. Cross-reference ordering information with the manufacturer's latest product status updates to confirm availability and compliance with environmental directives.

Selection Notes

Select this component for applications requiring compact high-side switching with low on-resistance. The 6-WLCSP package suits space-constrained portable designs. Verify that the control logic levels are compatible with the host processor. Consider the 2.5A current limit and 18mΩ resistance for thermal management. Ensure the operating voltage range aligns with the system's power rail specifications.

Part Context

This part belongs to NXP's NX5 series of general load switches designed for mobile and portable applications. It complements other power management solutions like the NX20P3483UK for USB Type-C interfaces. The series focuses on small form factors and efficient power distribution for smartphones and similar digital hubs.
