NXPS20H110C,127

Overview

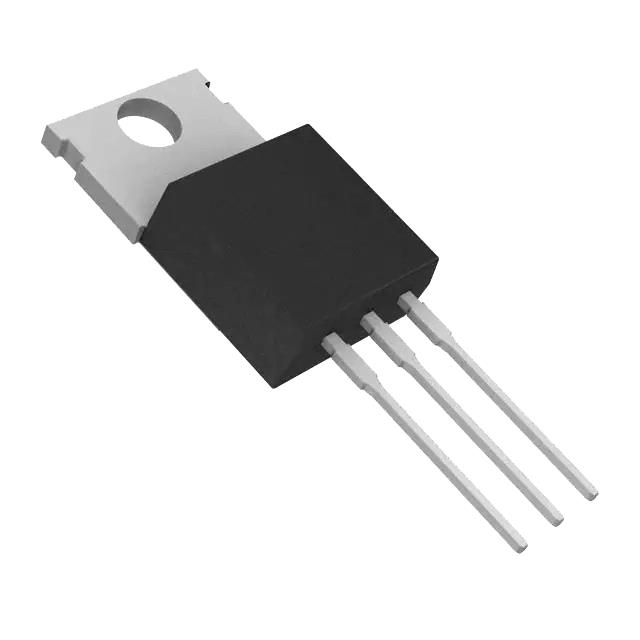

The NXPS20H110C,127 is a Schottky diode array manufactured by WeEn Semiconductors, a brand under NXP USA Inc. It features a common cathode configuration with two internal diodes. The device supports a maximum repetitive peak reverse voltage of 110 V and an average forward rectified current of 10 A per diode. It utilizes a TO-220AB through-hole package. The component operates within a junction temperature range up to 175°C and exhibits a forward voltage of 770 mV at 10 A.

Feature Summary

• Schottky barrier technology for low forward voltage drop
• Common cathode dual-diode configuration
• High thermal stability with 175°C junction rating

Applications

• DC-DC converter circuits
• Free-wheeling diodes in power supplies
• Reverse polarity protection

Procurement Notes

Verify the manufacturer designation as WeEn Semiconductors on official datasheets. Confirm the specific suffix ,127 corresponds to the TO-220AB package variant. Ensure compatibility with 110 V reverse voltage requirements. Check for discontinued status or alternative sourcing channels if standard availability is limited.

Selection Notes

Select this component for applications requiring high current handling up to 10 A with low switching losses. The 110 V rating suits medium-voltage power conversion systems. The TO-220AB package facilitates heatsinking for thermal management. Compare leakage current specifications against system tolerance levels.

Part Context

This part belongs to the NXPS20 series of Schottky diode arrays. It shares functional similarities with other variants like the NXPS20H100C but differs in reverse voltage blocking capability. The series is designed for general-purpose power rectification and freewheeling applications in industrial and consumer electronics.

Replacement Considerations

NXPS20H100C,127 offers identical electrical characteristics except for a lower 100 V reverse voltage rating.
