NZ2520SA-19.200MHZ

Overview

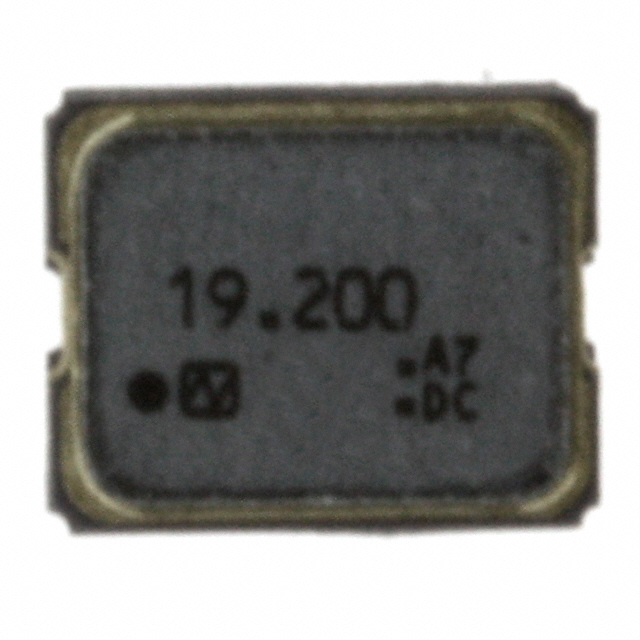

The NZ2520SA-19.200MHZ is a temperature-compensated crystal oscillator (TCXO) manufactured by NDK. It operates at a nominal frequency of 19.2 MHz with CMOS output logic. The device supports a supply voltage of 3V and includes a standby function for power-down control. It features a frequency stability of ±30 ppm and functions within an operating temperature range of -10°C to +60°C. The component utilizes a 4-SMD, no-lead surface-mount package measuring 2.50mm x 2.00mm in size with a maximum height of 0.90mm.

Feature Summary

• Temperature compensation ensures stable frequency performance across the specified operating temperature range.
• Integrated standby function allows for power-down control to reduce energy consumption.
• CMOS output interface provides compatibility with standard digital logic circuits.

Applications

• Automotive advanced driver assistance systems
• Communication modules requiring precise timing references
• Portable electronic devices utilizing low-power oscillators

Procurement Notes

Verify that the specific part number matches the required frequency and tolerance specifications for your design. Confirm the package dimensions align with your PCB footprint requirements. Ensure the supply voltage and standby functionality meet your system's power management needs. Check for any updated series information or replacement notices from the manufacturer before finalizing procurement.

Selection Notes

Select this component when a compact TCXO with CMOS output is required for applications needing ±30 ppm stability. Consider the -10°C to +60°C operating range against your environmental conditions. Evaluate the 3V supply requirement and standby current implications for battery-powered designs compared to standard XO alternatives.

Part Context

This oscillator belongs to the NZ2520SA series, which are small-sized temperature-compensated crystal oscillators designed for surface mount technology. The series is characterized by its compact 2.5x2.0mm footprint and low profile, making it suitable for space-constrained consumer and automotive electronics where frequency stability is critical.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official NDK resources for potential cross-references or newer series replacements if this specific model becomes unavailable.
