NZ2520SA-41.360MHZ

Overview

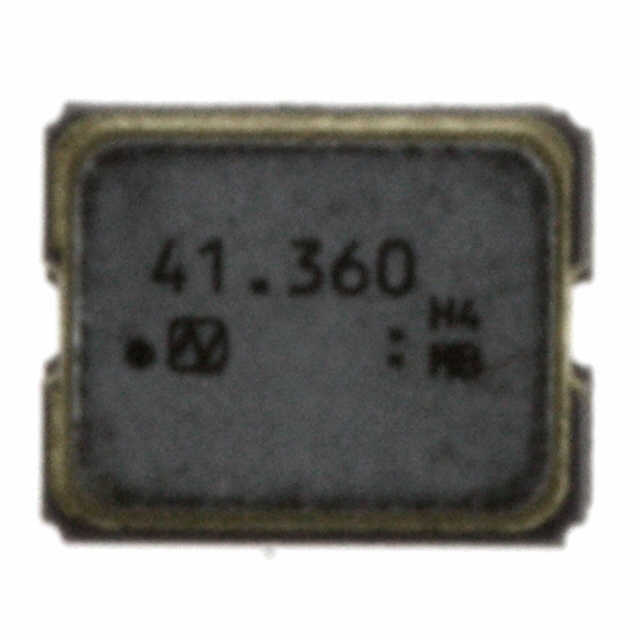

The NZ2520SA-41.360MHZ is a CMOS crystal oscillator manufactured by NDK, operating at a nominal frequency of 41.36 MHz. It features a compact 4-SMD surface-mount package with no leads, measuring 2.5 x 2.0 mm and 0.9 mm in height. The device operates on a 3V supply voltage and includes a standby (shutdown) function to reduce power consumption. It utilizes AT-cut quartz for high frequency stability and supports rapid startup characteristics.

Feature Summary

• Integrated standby mode for power management
• Compact 2.5x2.0mm SMD footprint
• AT-cut quartz construction for stability

Applications

• Portable electronic devices requiring low power
• Communication modules utilizing 41.36 MHz clock signals
• Automotive electronics systems

Procurement Notes

Verify the specific output logic level and load capacitance requirements against your circuit design before procurement. Confirm that the 3V supply voltage aligns with your system's power rails. Ensure the 4-SMD package dimensions fit within your PCB layout constraints. Check for any specific automotive qualification certifications if used in vehicle applications.

Selection Notes

Select this component when a precise 41.36 MHz clock source is required in a space-constrained environment. The integrated shutdown feature makes it suitable for battery-operated applications where power efficiency is critical. Consider the 3V operating voltage range to ensure compatibility with your microcontroller or processor interfaces.

Part Context

This part belongs to the NZ2520SA series of crystal oscillators from NDK. The series is characterized by small size and high reliability, often utilized in consumer electronics and industrial equipment. It represents a standard solution for generating stable clock signals in modern compact electronic designs.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
