NZ2520SB-10.000000MHZ

Overview

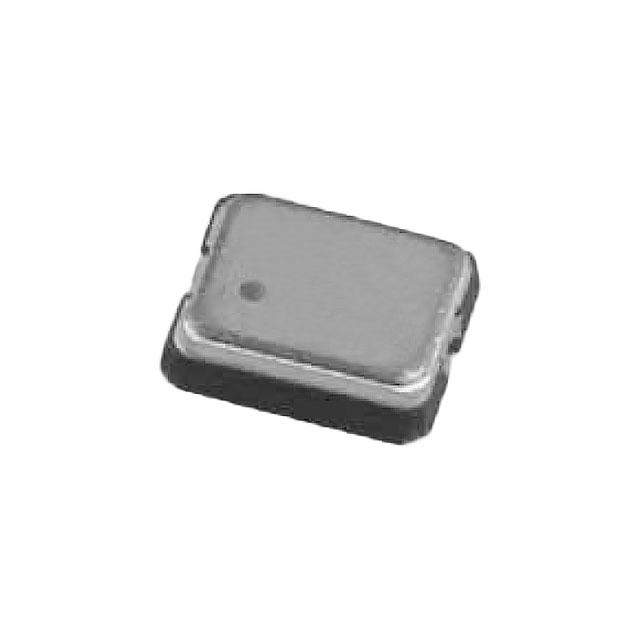

The NZ2520SB-10.000000MHZ is a CMOS clock oscillator manufactured by NDK (NIHON DEMPA KOGYO CO., LTD). It operates at a nominal frequency of 10.000000 MHz and utilizes a standard XO output type. The component is housed in an ultra-compact surface-mount package with dimensions of 2.5 mm x 2.0 mm and a maximum height of 0.90 mm. This series is designed for automatic mounting via IR reflow processes, ensuring compatibility with lead-free soldering standards.

Feature Summary

• Ultra-compact physical footprint suitable for space-constrained circuit designs
• Compatible with automated surface-mount assembly and lead-free IR reflow processes
• Utilizes AT-cut crystal technology for stable oscillation performance

Applications

• General-purpose clock signal generation in embedded systems
• Timing reference sources for microcontrollers and digital logic circuits
• Consumer electronics requiring compact timing components

Procurement Notes

Verify the specific frequency tolerance and load capacitance requirements against the official NDK datasheet for the NZ2520SB series before procurement. Confirm that the supply chain source provides genuine components to ensure reliability. Check for any recent product change notifications or lifecycle status updates from the manufacturer to avoid obsolescence risks during production planning.

Selection Notes

Select this component when a 10 MHz CMOS clock signal is required in a minimal 2.5x2.0 mm SMD package. Ensure the application environment supports the operating temperature range specified for the NZ2520SB series. Consider the power consumption characteristics and drive level limitations inherent to the series when designing the oscillator circuit interface.

Part Context

This part belongs to the NZ2520SB series of SMD oscillators from NDK. The series is characterized by its small size, low profile, and lightweight construction. It is engineered to provide reliable clock signals for various electronic applications while maintaining high frequency stability through the use of precision AT-cut quartz crystals within the sealed package structure.

Replacement Considerations

Direct substitutes must match the 10 MHz frequency, CMOS output type, and 2.5x2.0mm package dimensions. Verify equivalent electrical parameters such as frequency tolerance, phase noise, and supply voltage requirements. Cross-reference with other manufacturers' 2520-sized XO products to ensure pinout compatibility and thermal performance alignment.
