NZ2520SB-22.000000MHZ

Overview

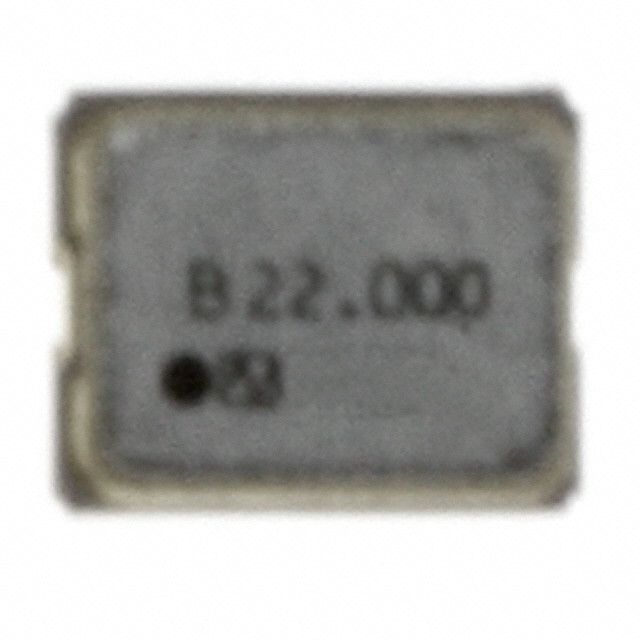

The NZ2520SB-22.000000MHZ is a surface-mount crystal oscillator manufactured by NDK (NIHON DEMPA KOGYO CO., LTD). It operates at a nominal frequency of 22 MHz with CMOS output logic. The device features a compact 4-SMD, no-lead package measuring 2.5 mm x 2.0 mm x 0.9 mm. It supports a standard supply voltage and includes a standby function with power-down capability. The unit is designed for lead-free IR reflow mounting and complies with RoHS standards.

Feature Summary

• Compact ultra-thin SMD package suitable for space-constrained designs
• Integrated standby mode with low-power power-down functionality
• Compatible with automated lead-free IR reflow assembly processes

Applications

• Mobile communication devices
• Fixed radio communications equipment
• Office automation systems
• Automotive electronics

Procurement Notes

Verify the specific operating voltage and current consumption parameters against the official NDK datasheet prior to integration. Confirm that the selected package variant matches the required thermal and mechanical constraints of the target PCB layout. Ensure compliance with environmental regulations applicable to the final product deployment region.

Selection Notes

Select this component when a precise 22 MHz clock source is required in a minimal footprint. Consider the standby feature if power management during idle states is critical. Evaluate the CMOS output compatibility with the target microcontroller or processor input thresholds. Verify the operating temperature range meets the environmental requirements of the intended application scenario.

Part Context

This part belongs to the NZ2520SB series of SMD oscillators from NDK. The series is characterized by its ultra-compact dimensions and lightweight construction. It represents a solution for applications demanding high reliability and precision timing within modern electronic systems requiring small form factors.

Replacement Considerations

Direct substitutes include other 22 MHz CMOS SMD oscillators in the 2520-4P package. Verify pinout compatibility and electrical specifications before substitution.
