NZ2520SB-41.360MHZ

Overview

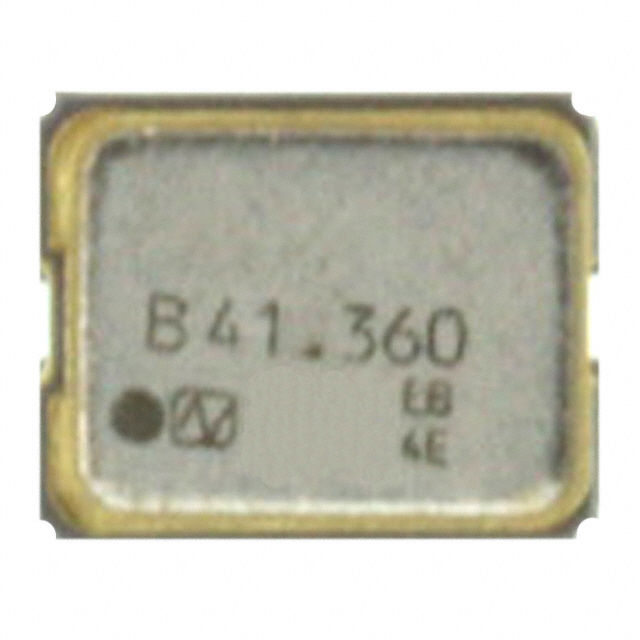

The NZ2520SB-41.360MHZ is a surface-mount CMOS clock oscillator manufactured by NDK (NIHON DEMPA KOGYO CO., LTD). It operates at a nominal frequency of 41.36 MHz and utilizes a standard CMOS output interface. The device supports a supply voltage of 3V and includes a standby function for power-down control. It is housed in a compact 4-SMD, no-lead package with dimensions of 2.5mm x 2.0mm.

Feature Summary

• Compact ultra-thin SMD package design
• Integrated standby power-down capability
• Standard CMOS output signal

Applications

• Mobile communications equipment
• Fixed radio communications systems
• Office automation devices
• Automotive electronics modules

Procurement Notes

Verify the specific suffix codes against official NDK documentation to ensure compatibility with required frequency tolerance and temperature range specifications. Confirm that the component status aligns with current production availability, as certain variants within this series may be subject to discontinuation notices. Cross-reference the package outline drawing to validate footprint requirements for PCB layout integration.

Selection Notes

Select this component when a low-profile surface-mount oscillator is required for space-constrained designs. Ensure the system logic levels are compatible with the standard CMOS output characteristics. Consider the thermal environment and verify that the operating temperature range meets the application's environmental demands without requiring additional derating measures.

Part Context

This part belongs to the NZ2520SB series of SMD oscillators from NDK. The series is characterized by its ultra-compact 2.5 mm x 2.0 mm x 0.9 mm package size, designed to minimize circuit board space. These units are taped for automatic mounting via IR reflow soldering processes, supporting lead-free manufacturing standards prevalent in modern electronics assembly.

Replacement Considerations

FH3200025 (Diodes Incorporated)

FAQ

Does the NZ2520SB-41.360MHZ support power management features?

Yes, the device includes a standby function that allows for power-down control.

What is the physical package type for this oscillator?

It uses a 4-SMD, no-lead package with dimensions of 2.5mm x 2.0mm.
