NZF220TT1

Overview

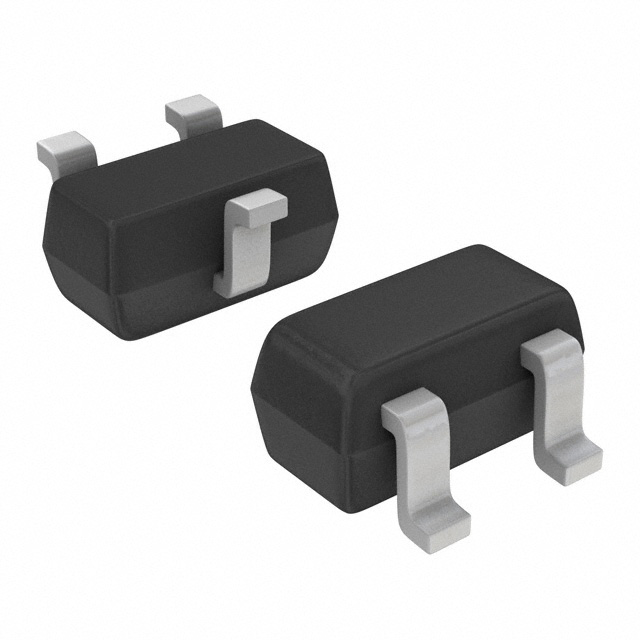

The NZF220TT1 is a single-channel integrated passive device (IPD) EMI filter with electrostatic discharge (ESD) protection, manufactured by onsemi. It utilizes a Zener diode-based Pi filter architecture to provide effective noise suppression in data lines. The component features a junction capacitance of 22 pF and incorporates a 100 Ω resistor within its internal structure. Designed for surface-mount applications, it operates within a maximum junction temperature range up to 150°C. This compact solution replaces discrete resistors, capacitors, and diodes, offering a space-efficient alternative for high-density circuit designs requiring robust signal integrity and protection.

Feature Summary

• Integrates EMI filtering and ESD protection into a single compact package
• Utilizes Zener diode-based Pi filter topology for efficient noise attenuation
• Replaces multiple discrete components to reduce board space and assembly complexity

Applications

• Data line protection in cost-sensitive portable products
• EMI suppression for cellular telephones and mobile devices
• Signal integrity enhancement in I/O interfaces

Procurement Notes

Verify the specific suffix TT1 to confirm the tape-and-reel packaging configuration, as ordering suffixes may indicate variations in reel size or handling specifications. Ensure the selected variant matches the required surface-mount footprint and thermal characteristics for the target application. Cross-reference the manufacturer's latest datasheet to confirm compliance with current environmental standards and RoHS directives before finalizing procurement.

Selection Notes

Select this component when space constraints prevent the use of discrete R-C-D filter networks. The integrated nature of the NZF220TT1 simplifies the bill of materials and reduces soldering points. Consider its 22 pF junction capacitance to ensure compatibility with the signal frequency requirements of the specific data line. Evaluate the thermal management capabilities relative to the expected operating environment and power dissipation limits.

Part Context

The NZF220TT1 belongs to onsemi's family of Integrated Passive Device (IPD) filters, specifically designed to address the growing demand for compact EMI solutions in consumer electronics. This product line represents a shift from traditional discrete filtering methods to monolithic integration, providing enhanced reliability and consistent performance. It is part of the broader portfolio aimed at improving signal integrity in high-speed digital interfaces while maintaining low profile and minimal footprint.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
