NZMM7V0T4

Overview

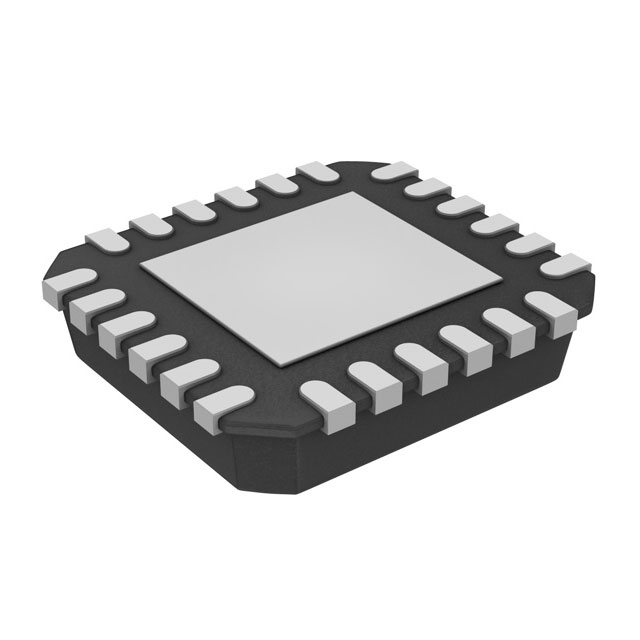

The NZMM7V0T4 is an EMI filter with integrated ESD protection manufactured by onsemi. It utilizes a low-pass RC Pi topology featuring 110 Ohm resistors and 22 pF capacitors. The device is housed in a compact 4x4 mm leadless MLF surface-mount package with a maximum height of 1.00 mm. Designed for signal line protection, it addresses electromagnetic interference and electrostatic discharge risks in high-speed data interfaces.

Feature Summary

• Integrates EMI filtering and ESD protection within a single component
• Employs bidirectional low-pass RC Pi network architecture
• Utilizes a compact leadless MLF surface-mount form factor

Applications

• USB D+/- line protection
• GPIO line protection
• Audio line protection

Procurement Notes

Verify the specific datasheet revision and RoHS compliance status prior to procurement. Confirm that the obsolete part status does not impact long-term supply chain stability for your production timeline. Ensure the 4x4 mm MLF footprint matches your PCB layout constraints and thermal requirements.

Selection Notes

Select this component when space-constrained designs require combined EMI suppression and ESD mitigation for sensitive digital or analog lines. The RC Pi topology offers effective noise attenuation while maintaining signal integrity. Consider the 110 Ohm resistance value for impedance matching compatibility with standard interface protocols.

Part Context

This component belongs to onsemi's portfolio of passive protection devices designed for consumer electronics and industrial applications. It complements other ESD and surge protection solutions by providing simultaneous filtering capabilities. The MLF package aligns with industry trends toward miniaturization and high-density board assembly.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify functional equivalence with alternative RC Pi filters if sourcing is restricted due to the obsolete status.
