OAEWDLLTYF-150.000000

Oscillators Overview

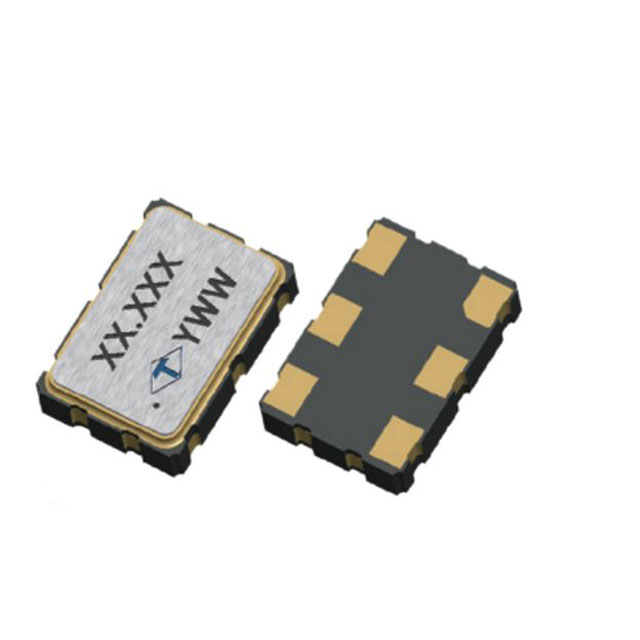

The Taitien OAEWDLLTYF-150.000000 is a standard crystal oscillator (XO) operating at a frequency of 150 MHz. It utilizes the LVPECL output interface and functions on a 3.3V supply voltage. The device features an enable/disable control function for power management. It is housed in a compact 6-SMD, no lead package with dimensions of 3.2 x 2.5 mm. The unit offers a frequency stability of ±25ppm and is designed for surface mount applications requiring precise timing signals.

Oscillators Feature Summary

• Supports LVPECL output interface for high-speed digital applications
• Includes enable/disable functionality for efficient power control
• Utilizes hermetically sealed ceramic package for reliability

Oscillators Applications

• High-frequency data communication systems
• Network infrastructure equipment
• Test and measurement instruments

Oscillators Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required frequency tolerance and load capacitance specifications. Confirm that the LVPECL output type matches the receiving circuit's input requirements. Check the datasheet for the recommended soldering profile to prevent thermal damage during assembly. Ensure the 3.3V supply voltage aligns with the system design constraints before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a 150 MHz clock signal with LVPECL outputs is required. Consider the ±25ppm stability requirement against system jitter budgets. Evaluate the 3.2 x 2.5 mm footprint against available PCB space. Verify that the enable pin logic levels are compatible with the controlling microcontroller or FPGA GPIOs for proper power sequencing.

Oscillators Part Context

This model belongs to Taitien's OA-U series of ultra-low phase noise oscillators. These devices are characterized by tight symmetry and low jitter performance, typically achieving 50fs RMS from 12kHz to 20MHz. The series uses industry-standard ceramic packages to provide robust timing solutions for demanding electronic applications requiring stable high-frequency references.

Oscillators Replacement Considerations

Cross-reference with other Taitien models in the OA-U series for similar form factors. Verify that any substitute maintains the LVPECL output configuration and 150 MHz frequency. Ensure the replacement part supports the same 3.3V operating voltage and enable/disable control scheme to maintain system compatibility.
