OAJMGLLANF-125.000000

Oscillators Overview

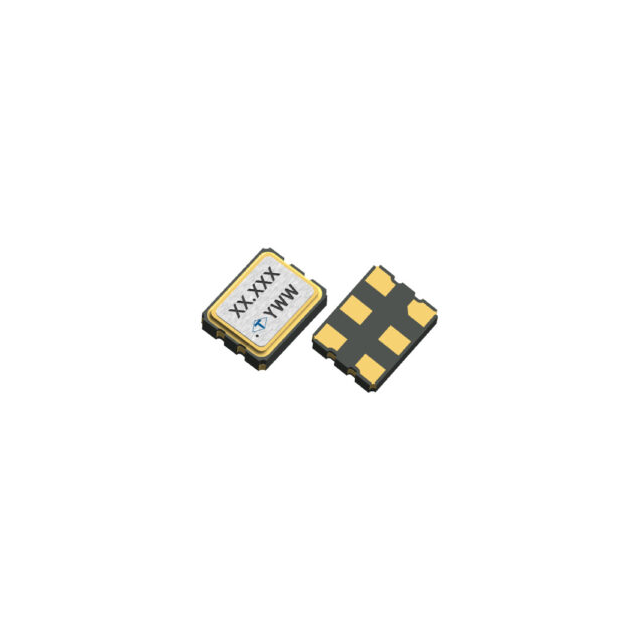

The OAJMGLLANF-125.000000 is a standard LVPECL crystal oscillator manufactured by Taitien. It operates at a nominal frequency of 125 MHz with a frequency stability of ±50 ppm. The device requires a supply voltage of 2.5 V and draws a maximum supply current of 45 mA. It supports an operating temperature range from -40°C to +85°C. The component utilizes surface mount technology in a compact form factor, designed for high-reliability timing applications requiring precise clock signals.

Oscillators Feature Summary

• Provides complementary LVPECL output signals for high-speed digital interfaces
• Features enable/disable functionality for power management control
• Constructed with a ceramic surface mount package for robust mechanical stability

Oscillators Applications

• High-speed data communication equipment
• Network infrastructure timing modules
• Test and measurement instrument clocks

Oscillators Procurement Notes

Verify the specific suffix codes against official Taitien documentation to confirm exact electrical tolerances and pinout configurations. Ensure that environmental certifications match project requirements. Cross-reference the manufacturer's latest datasheet to validate the operating temperature range and supply voltage specifications before finalizing procurement orders.

Oscillators Selection Notes

Select this component when a stable 125 MHz clock source is required for LVPECL-compatible circuits. Consider the ±50 ppm stability rating against system jitter budgets. Evaluate the 45 mA current consumption against available power rails. Confirm that the -40°C to +85°C industrial temperature range aligns with the intended operational environment constraints.

Oscillators Part Context

Taitien Electronics specializes in quartz frequency control products, including oscillators and crystals. This model belongs to their standard oscillator lineup, targeting industries demanding reliable timing solutions. The company maintains ISO 9001 certification and provides engineering support for custom frequency control needs across global markets.

Oscillators Replacement Considerations

Consult official cross-reference lists for direct substitutes. Verify pin compatibility and electrical parameters such as supply voltage and output logic levels before substituting.
