OBEWDJVTNY-156.250000

Oscillators Overview

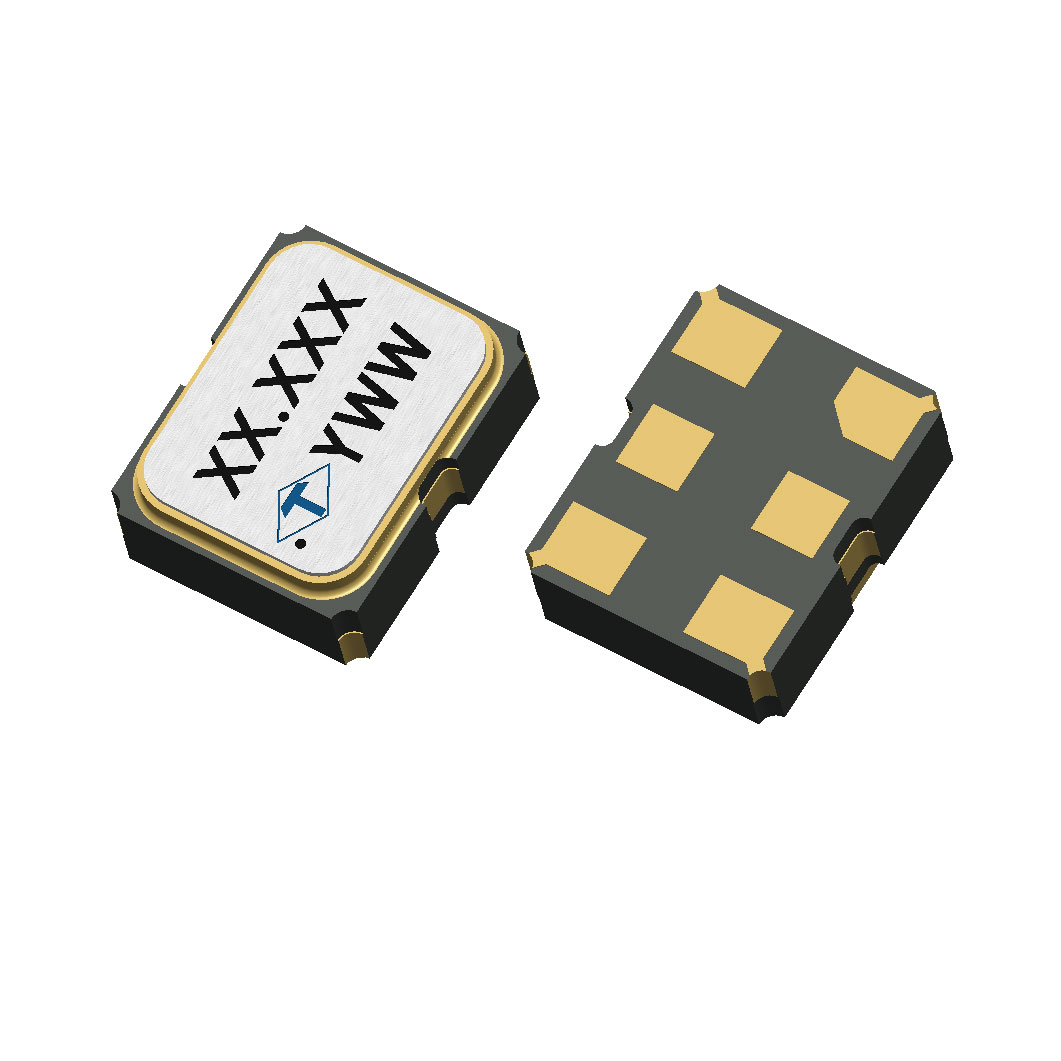

The OBEWDJVTNY-156.250000 is a standard crystal oscillator manufactured by Taitien, operating at a nominal frequency of 156.25 MHz. It utilizes LVDS output signaling and functions on a 3.3V supply voltage. The device features an enable/disable control function and is housed in a 6-pad surface-mount ceramic package measuring 7.5 x 5.0 x 1.9 mm. Frequency stability is rated at ±25 ppm across an operating temperature range of -40°C to +105°C. Maximum supply current is specified at 35 mA.

Oscillators Feature Summary

• Complementary LVDS output signals for high-speed data transmission applications
• Integrated enable and disable functionality for power management control
• Low phase jitter performance suitable for precision timing requirements
• RoHS compliant construction with lead-free soldering capabilities

Oscillators Applications

• High-speed serial communication interfaces requiring precise clocking
• Data acquisition systems needing stable frequency references
• Telecommunications equipment utilizing standard XO specifications
• Industrial control systems operating within extended temperature ranges

Oscillators Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure compatibility with required tolerance levels and packaging configurations. Confirm that the LVDS output type matches system interface requirements. Check RoHS compliance status if environmental regulations apply to the final assembly. Ensure the enable/disable pin configuration aligns with the host controller logic levels. Validate the operating temperature range against the intended deployment environment conditions.

Oscillators Selection Notes

Select this component when a 156.25 MHz reference signal is required for LVDS-based circuits. Consider the ±25 ppm stability specification for applications demanding moderate frequency accuracy. Evaluate the 3.3V supply requirement against available power rails. Assess the physical footprint constraints against the 7.5 x 5.0 mm package dimensions. Verify thermal management needs given the -40°C to +105°C operational range.

Oscillators Part Context

This oscillator belongs to Taitien's standard XO series, designed for general-purpose timing applications. The brand specializes in frequency control products including quartz crystals and oscillators. This specific model represents a surface-mount solution offering reliability in compact electronic designs. The product line supports various industries requiring precise clock generation without complex tuning mechanisms.

Oscillators Replacement Considerations

Consult official substitution lists for direct equivalents. Cross-reference pinout compatibility and electrical parameters before integrating alternative components. Verify that substitute parts maintain the same LVDS output characteristics and enable/disable functionality.
