OCL-400 GE545-XD-T

$4.46

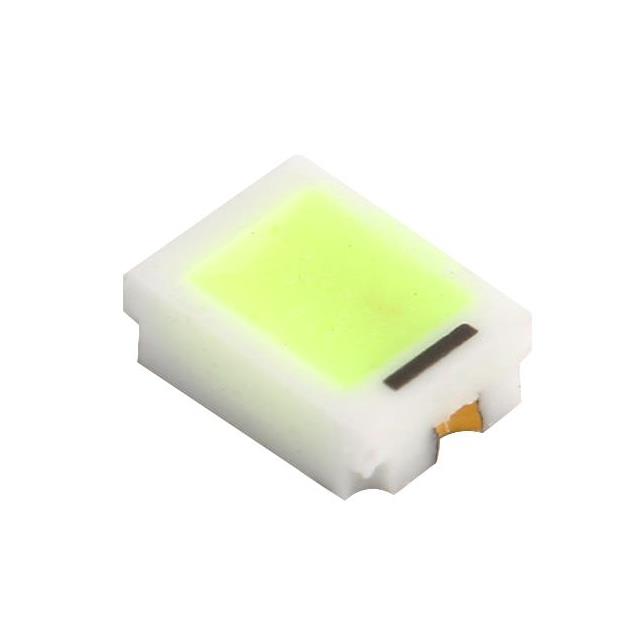

Description：GREEN EMITTER 545NM SMD 3020 FL
Series：OCL-400
Mfr：EPIGAP OSA Photonics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:08ed9d7a9e92 Category: LED Indication - Discrete Brand: EPIGAP OSA Photonics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

OCL-400 GE545-XD-T is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists EPIGAP OSA Photonics. Its product description is GREEN EMITTER 545NM SMD 3020 FL. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for OCL-400 GE545-XD-T

Description：GREEN EMITTER 545NM SMD 3020 FL
Series：OCL-400
Mfr：EPIGAP OSA Photonics
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Diffused
Millicandela Rating：900mcd
Lens Style：Rectangle with Flat Top
Lens Size：-
Voltage - Forward (Vf) (Typ)：3.1V
Current - Test：20mA
Viewing Angle：-
Mounting Type：Surface Mount
Wavelength - Dominant：545nm
Wavelength - Peak：-
Features：-
Package / Case：1208 (3020 Metric)
Supplier Device Package：1208
Size / Dimension：3.00mm L x 2.00mm W
Height (Max)：1.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for OCL-400 GE545-XD-T

OCL-400 GE545-XD-T

LED Indication - Discrete Overview

The OCL-400 GE545-XD-T is a green visible light-emitting diode manufactured by EPIGAP OSA Photonics. It operates at a wavelength of 545 nm with a typical forward voltage of 3.1 V to 3.2 V and a maximum DC forward current of 20 mA. The component utilizes a surface-mount 1208 (3020 metric) package, measuring 3.0 mm in length, 2.0 mm in width, and 1.0 mm in height. It features a flat lens design and is constructed on an Al2O3 ceramic substrate.

LED Indication - Discrete Feature Summary

Green emission at 545 nm for clear visual indication
Surface-mount construction in a compact 1208 footprint
Alumina ceramic substrate for thermal stability

LED Indication - Discrete Applications

Visual status indicators
General lighting applications
Sensing systems

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix and binning requirements against the manufacturer's latest datasheet before procurement. Confirm that the 1208 package dimensions align with your PCB footprint design. Ensure compliance with RoHS and REACH regulations as stated in official documentation. Cross-reference the part number with authorized distributors to avoid counterfeit components.

LED Indication - Discrete Selection Notes

Select this component when a standard green indicator is required in space-constrained designs. The 1208 package offers a balance between visibility and board area efficiency. Consider the 3.1 V forward voltage drop for power supply calculations. Verify thermal management needs given the ceramic substrate properties for continuous operation scenarios.

LED Indication - Discrete Part Context

This device belongs to the OCL-400 series of standard SMD LEDs from EPIGAP OSA Photonics. The series includes various colors and wavelengths tailored for discrete indication and sensing. The GE545 variant specifically targets green light output, distinguishing it from infrared or red variants within the broader product family.
