ODEMDLLTNF-156.250000

Oscillators Overview

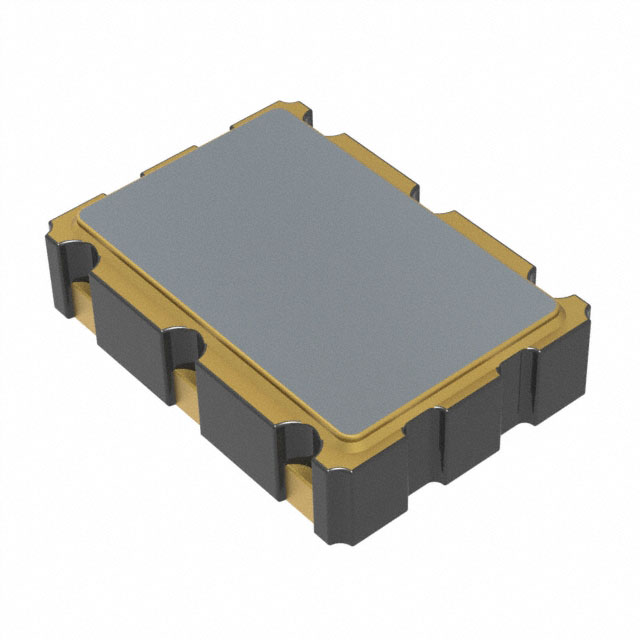

The Taitien ODEMDLLTNF-156.250000 is a 156.25 MHz crystal oscillator featuring LVPECL output format. It operates at 3.3V with integrated enable/disable functionality. The component utilizes an 8-SMD, no lead surface mount package. Operating temperature range spans from -40°C to 85°C. Maximum height is 1.85mm.

Oscillators Feature Summary

• LVPECL output interface for high-speed digital applications
• Integrated enable and disable control function
• Surface mount construction in compact 8-SMD no lead package

Oscillators Applications

• High-speed data communication systems
• Network infrastructure equipment
• Telecommunications base stations

Oscillators Procurement Notes

Verify the complete part number including frequency suffix against official Taitien documentation. Confirm LVPECL output compatibility with target circuit design. Validate operating temperature range requirements against application environment specifications before procurement.

Oscillators Selection Notes

Select this component when LVPECL signaling is required for 156.25 MHz clock distribution. Ensure power supply voltage matches 3.3V nominal requirements. Consider thermal management within the specified -40°C to 85°C operational window during system integration.

Oscillators Part Context

This oscillator belongs to Taitien's quartz frequency control product line. The manufacturer specializes in various crystal oscillators and frequency control components. The ODEM series represents standard XO offerings with specific interface configurations.

Oscillators Replacement Considerations

Cross-reference compatible LVPECL oscillators with identical 156.25 MHz frequency and 8-SMD package dimensions. Verify pinout compatibility and electrical parameter alignment before substitution.
