OMB.868.B08F21

Antennas RF Overview

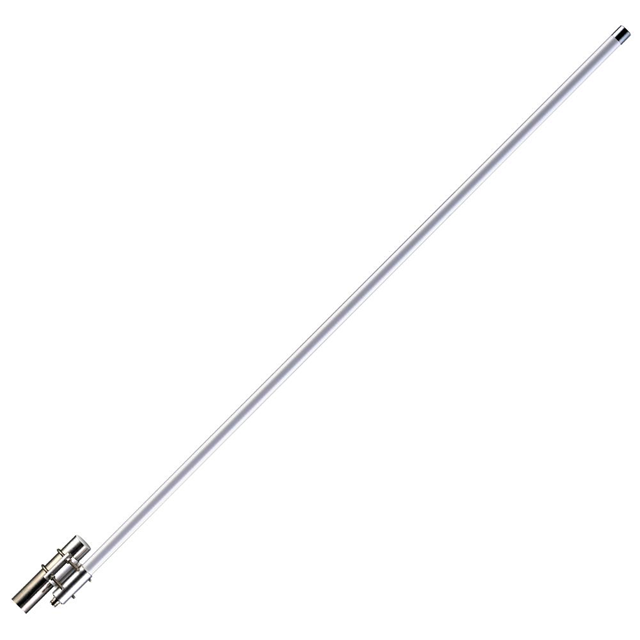

The Taoglas OMB.868.B08F21 is a vertical polarization, straight whip RF antenna designed for the 868 MHz ISM band. It operates within a frequency range of 860 MHz to 870 MHz and delivers an 8 dBi peak gain. The unit features an N-type female connector and supports a maximum power rating of 50 W. Key electrical specifications include a Voltage Standing Wave Ratio (VSWR) of 1.5. Physically, it is a fiberglass omni-directional outdoor antenna with a maximum height of 147.40 cm, utilizing bracket mounting for installation.

Antennas RF Feature Summary

• High-gain omni-directional radiation pattern optimized for wide-area coverage
• Robust fiberglass construction engineered for reliable outdoor environmental exposure
• Vertical polarization design ensuring consistent signal transmission characteristics

Antennas RF Applications

• LoRa base station deployments
• Industrial, Scientific, and Medical (ISM) band communications
• UHF wireless data link infrastructure

Antennas RF Procurement Notes

Verify the specific ordering suffix to confirm connector type and cable length configurations. Ensure compatibility with existing mounting hardware for bracket installation. Confirm regulatory compliance requirements for the target operational region prior to procurement. Cross-reference technical specifications against system interface requirements to guarantee proper impedance matching and performance integrity.

Antennas RF Selection Notes

Select this model when high gain is required for extended range in UHF applications. The 50 W power rating suits robust industrial environments. Verify that the N-type female interface matches the transmitter or receiver port. Consider the physical dimensions for structural support needs due to the antenna's height.

Antennas RF Part Context

This component belongs to the Barracuda series of outdoor antennas from Taoglas Limited. The series focuses on durable, high-performance solutions for harsh environments. The OMB.868 variant specifically targets the European ISM band frequencies, providing a specialized alternative to multi-band or lower-gain indoor units.

Antennas RF Replacement Considerations

Direct substitutes include other models within the same Barracuda family operating at 868 MHz, such as variants with different cable lengths or connector orientations. Ensure any replacement maintains the 8 dBi gain specification and N-type female interface for seamless integration.
