OMB.8912.05F21

$83.99

Description：RF ANT 850MHZ/900MHZ WHIP STR N
Series：Barracuda
Mfr：Taoglas Limited
Package：Tube

SKU:351882ee9c09 Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

OMB.8912.05F21 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 850MHZ/900MHZ WHIP STR N. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for OMB.8912.05F21

Description：RF ANT 850MHZ/900MHZ WHIP STR N
Series：Barracuda
Mfr：Taoglas Limited
Package：Tube
RF Family/Standard：Cellular, General ISM
Frequency Group：Wide Band
Frequency (Center/Band)：850MHz, 900MHz, 1.8MHz, 1.9GHz, 2.1GHz
Frequency Range：824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type：Whip, Straight
Number of Bands：5
VSWR：2
Return Loss：-
Gain：3.04dBi, 3.03dBi, 4.3dBi, 4.83dBi, 5.56dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：23.425" (595.00mm)
Applications：DCS, GSM, PCS, WCDMA
Power - Max：50 W

Antennas RF datasheet and documents for OMB.8912.05F21

OMB.8912.05F21

Antennas RF Overview

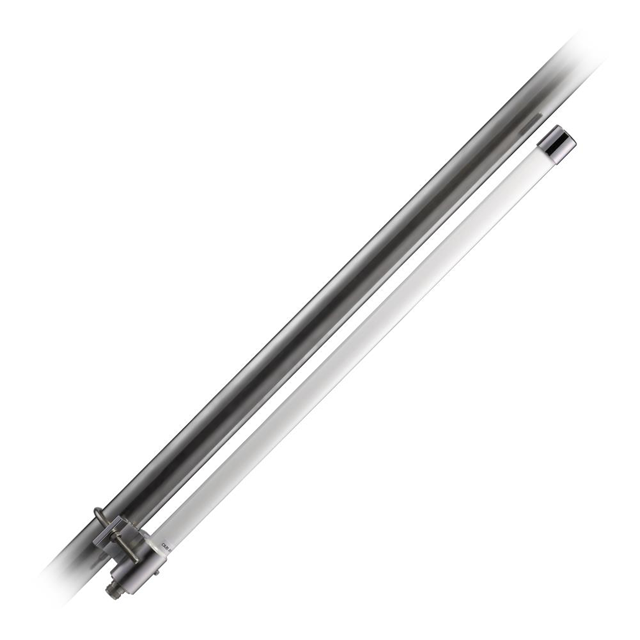

The Taoglas OMB.8912.05F21 is a vertical whip antenna designed for cellular applications, operating within frequency ranges of 824MHz to 960MHz and 1710MHz to 2170MHz. It provides a gain of 4.63dBi with a VSWR of 2. The connector type is N-type female, and the maximum power handling is 50W. The unit features an omni-directional radiation pattern and measures 463mm in height.

Antennas RF Feature Summary

Vertical whip design suitable for outdoor environments
Omni-directional radiation pattern for broad coverage
Integrated low-noise amplifier (LNA) functionality

Antennas RF Applications

GSM networks
UMTS and WCDMA systems
LTE and NB-IoT deployments
HSPA cellular infrastructure

Antennas RF Procurement Notes

Verify the specific ordering suffix to confirm connector gender and cable length requirements. Ensure the selected variant matches the required mounting hardware and environmental protection rating for the intended installation site. Cross-reference the datasheet for precise mechanical dimensions before integration.

Antennas RF Selection Notes

Select this model when high-gain omnidirectional coverage is required for challenging cellular environments. The integrated LNA enhances signal reception for weak signals. Verify compatibility with existing N-type interfaces and ensure the 50W power rating exceeds system operational limits.

Antennas RF Part Context

This component belongs to the Barracuda series of outdoor antennas by Taoglas Limited. The series focuses on robust performance for cellular and IoT applications. The OMB.8912.05F21 specifically targets multi-band cellular frequencies, supporting legacy and modern mobile network standards.
