OMENGLVAKY-212.500000

Oscillators Overview

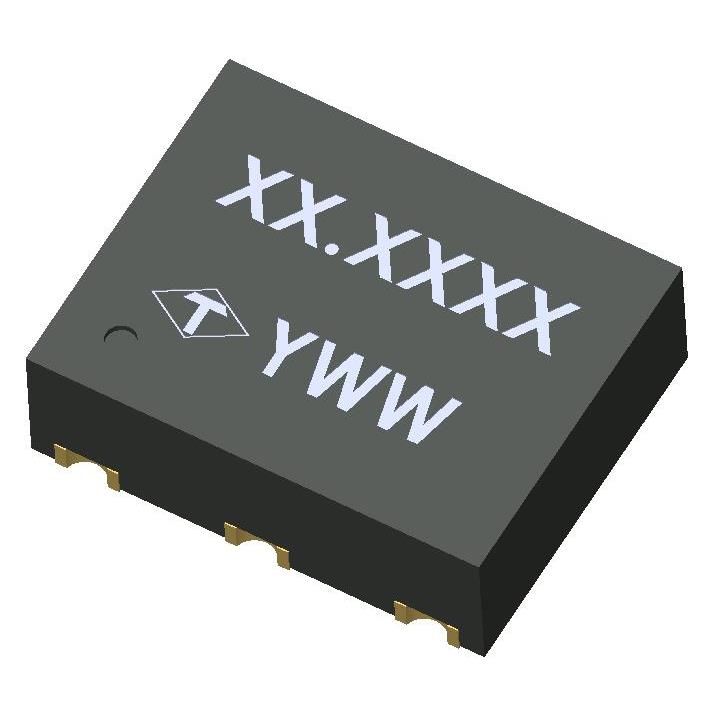

The OMENGLVAKY-212.500000 is a differential output crystal oscillator from the Taitien OM-K series, operating at a standard frequency of 212.5 MHz. It utilizes LVDS output format and requires a 3.3 V supply voltage. The device features an Enable/Disable function for power management. Frequency stability is maintained at ±50 ppm across an industrial temperature range of -40°C to +85°C. The component is housed in a compact 6-SMD, No Lead surface-mount package with dimensions of 3.2 mm x 2.5 mm.

Oscillators Feature Summary

• Differential LVDS output configuration designed for low jitter applications
• Integrated Enable/Disable control function for efficient power management
• Compact 3.2 mm x 2.5 mm SMD package suitable for space-constrained designs

Oscillators Applications

• 400G/800G network equipment clocking
• High-speed optical modules
• Network switches and routers
• Test and instrumentation devices

Oscillators Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to ensure correct output format and voltage compatibility. Confirm that the required enable/disable functionality aligns with system design requirements. Check for updated revision levels or pinout variations before finalizing procurement specifications.

Oscillators Selection Notes

Select this model when a 212.5 MHz reference signal with LVDS outputs is required for high-speed data transmission interfaces. Consider the ±50 ppm stability specification for timing accuracy needs within the industrial temperature range. Ensure the 3.3 V supply voltage matches the target circuit's power domain constraints.

Oscillators Part Context

This oscillator belongs to the OM-K series, which provides differential outputs for low-noise performance. The series supports frequencies up to 2.1 GHz and is engineered for applications demanding minimal phase jitter. The OM-K form factor offers a balance between electrical performance and physical footprint for modern electronic assemblies.

Oscillators Replacement Considerations

Cross-reference with ONENGLVAKY-212.500000 if LVPECL output is preferred instead of LVDS. Verify mechanical compatibility with existing footprints when substituting with other manufacturers' 212.5 MHz oscillators.
