ONENGLVAKY-212.500000

Oscillators Overview

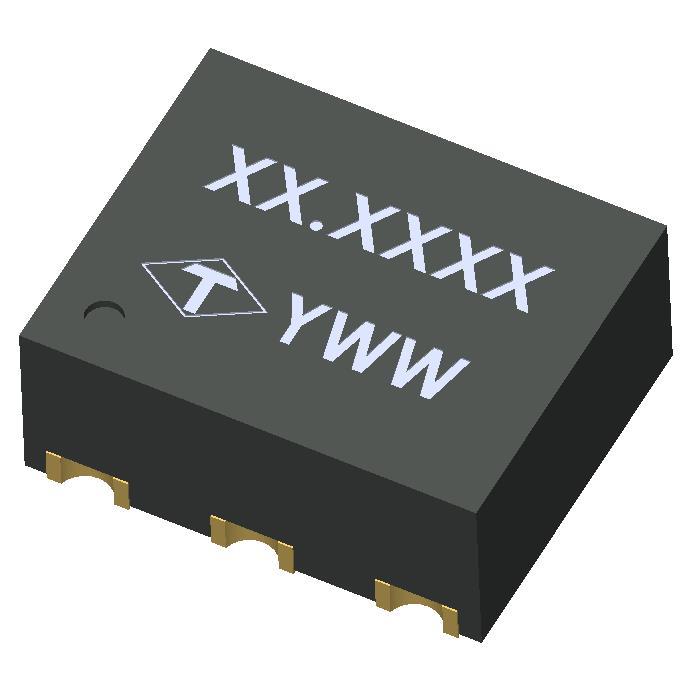

The ONENGLVAKY-212.500000 is a 212.5 MHz crystal oscillator (XO) manufactured by Taitien, designed for high-frequency signal generation in electronic circuits. It utilizes LVDS output signaling to ensure low noise and high-speed data transmission capabilities. The device operates on a single 3.3V supply voltage and features an enable/disable function for power management flexibility. It is housed in a compact 6-SMD, No Lead package, suitable for surface-mount assembly processes. Key electrical specifications include a frequency stability of ±50ppm and a maximum supply current of 110mA. The component supports an operating temperature range from -40°C to +85°C, ensuring reliable performance across various industrial and commercial environments.

Oscillators Feature Summary

• LVDS output interface for low-noise, high-speed signal integrity
• Integrated enable/disable control for efficient power management
• Compact 6-SMD no-lead package design for space-constrained applications

Oscillators Applications

• High-speed digital communication systems requiring precise clock signals
• Data acquisition equipment needing stable frequency references
• Industrial control systems operating within extended temperature ranges

Oscillators Procurement Notes

Verify the specific output configuration and pinout against the official Taitien datasheet before integration. Ensure that the PCB footprint matches the 6-SMD no-lead package dimensions precisely. Confirm that the system power supply provides a clean 3.3V rail capable of sourcing the maximum 110mA current without significant voltage droop during operation. Check for any required external load capacitors or termination resistors as specified in the application notes to maintain signal integrity and frequency accuracy.

Oscillators Selection Notes

Select this component when a stable 212.5 MHz reference with LVDS outputs is required in a small form factor. Consider the ±50ppm stability requirement against your system's jitter tolerance. Evaluate the thermal environment to ensure it remains within the -40°C to +85°C operational range. Compare the 110mA current draw against available power budget constraints. Verify compatibility with the host circuit's logic levels and impedance matching requirements for LVDS interfaces.

Oscillators Part Context

This oscillator belongs to Taitien's series of standard XO components designed for general-purpose high-frequency applications. It complements other models in the lineup that may offer different frequencies, output types, or stability grades. The part is distinct from MEMS oscillators or VCXOs due to its fixed frequency and crystal-based resonance mechanism. It serves as a primary clock source rather than a programmable or tunable frequency generator.

Oscillators Replacement Considerations

Direct substitutes must match the 212.5 MHz frequency, LVDS output type, 3.3V supply, and 6-SMD package. Verify pin-to-pin compatibility and identical electrical parameters such as stability and current consumption. Cross-reference with Taitien's internal cross-reference list for approved equivalents.
