OOEWDLVAYF-156.250000MHZ

Oscillators Overview

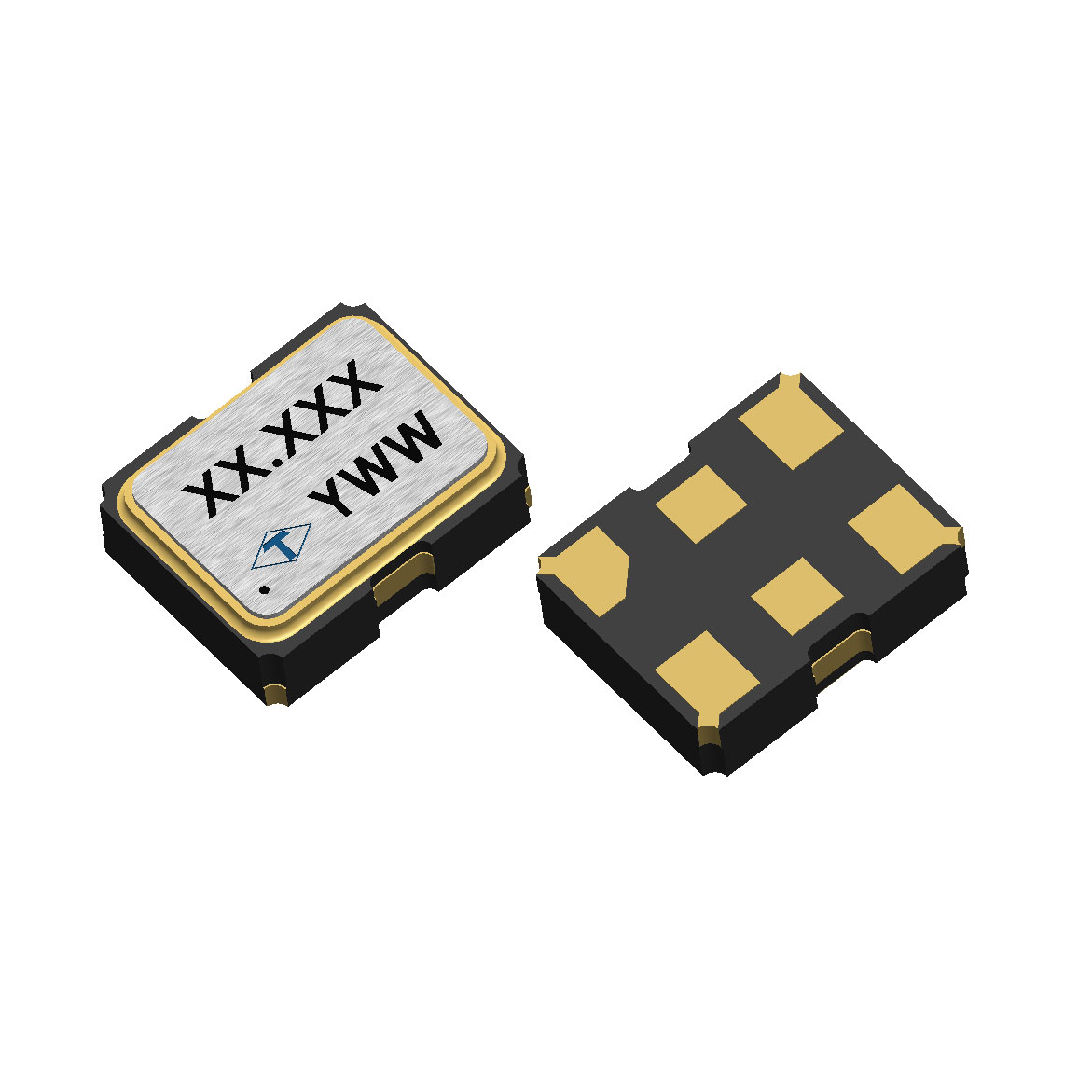

The OOEWDLVAYF-156.250000MHZ is a standard crystal oscillator manufactured by Taitien Electronics, operating at a nominal frequency of 156.25 MHz. It utilizes LVDS output technology and functions with a supply voltage range of 2.5 V to 3.465 V, typically rated at 2.5 V. The device features an enable/disable control function and is housed in a compact 6-SMD, no-lead surface mount package. This component is designed for high-speed digital applications requiring precise timing signals.

Oscillators Feature Summary

• Provides low jitter performance suitable for high-speed data transmission
• Features complementary output capability for flexible system integration
• Includes enable and disable functionality for power management

Oscillators Applications

• High-speed serial communication interfaces
• Data acquisition systems requiring precise clocking
• Network equipment synchronization circuits

Oscillators Procurement Notes

Verify the specific output type required for your design, as similar part numbers may offer LVPECL or CMOS outputs instead of LVDS. Confirm that the 6-SMD package dimensions align with your PCB footprint constraints. Ensure the supply voltage matches the 2.5 V specification to guarantee proper operation and signal integrity within the target application environment.

Oscillators Selection Notes

Select this component when a stable 156.25 MHz reference is needed for LVDS-based architectures. Consider the small form factor for space-constrained designs. Evaluate the enable/disable feature if power efficiency during idle states is critical. Compare against other Taitien series like OOEWDLLAYF for alternative output standards such as LVPECL if compatibility issues arise.

Oscillators Part Context

This oscillator belongs to Taitien's portfolio of precision timing solutions, which includes various crystal oscillators and resonators. The manufacturer specializes in frequency control products for telecommunications and consumer electronics. The company maintains ISO certifications and offers global engineering support, ensuring consistent quality across its extensive range of timing components for diverse industrial applications.

Oscillators Replacement Considerations

The OOEWDLLAYF-156.250000MHZ serves as a direct substitute offering LVPECL output instead of LVDS. Designers must verify voltage level compatibility and interface requirements before swapping between these variants. Both parts share identical frequency and package specifications, simplifying mechanical integration while requiring electrical adjustment.
