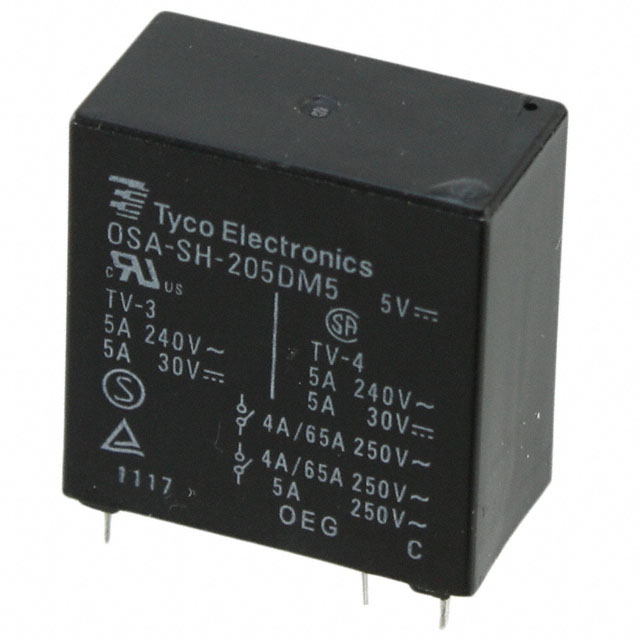

OSA-SH-205DM5,600

OSA-SH-205DM5,600 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE DPST 5A 5V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for OSA-SH-205DM5,600

• Description：RELAY GEN PURPOSE DPST 5A 5V
• Series：OSA, OEG
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Bulk
• Mounting Type：Through Hole
• Coil Voltage：5VDC
• Contact Form：DPST-NO (2 Form A)
• Contact Rating (Current)：5:00 AM
• Switching Voltage：240VAC, 30VDC - Max
• Load - Max Switching：1200VA, 150W
• Coil Current：108 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Fully
• Coil Insulation：-
• Must Operate Voltage：3.75 VDC
• Must Release Voltage：0.25 VDC
• Operating Temperature：-30°C ~ 60°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：CQC, CSA, TUV, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：20 ms
• Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for OSA-SH-205DM5,600
