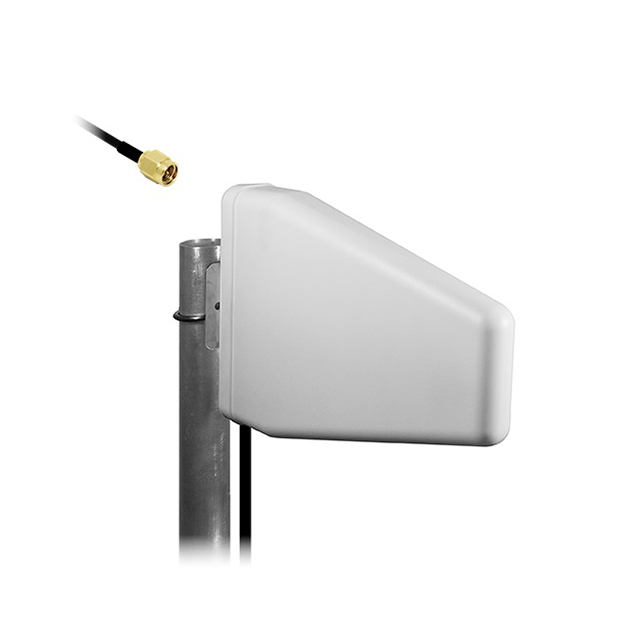

OSCAR18/1M/SMAM/S/S/22 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is 2G/3G/4G & WIFI ENCLOSED YAGI WA. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for OSCAR18/1M/SMAM/S/S/22
- Description：2G/3G/4G & WIFI ENCLOSED YAGI WA
- Series：OSCAR 18
- Mfr：Siretta Ltd
- Package：Bulk
- RF Family/Standard：802.15.4, Bluetooth, Cellular, General ISM, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：1.155GHz, 3.116GHz, 3.95GHz
- Frequency Range：410MHz ~ 1.9GHz, 433MHz ~ 5.8GHz, 2GHz ~ 5.9GHz
- Antenna Type：Yagi
- Number of Bands：3
- VSWR：-
- Return Loss：-
- Gain：8dBi, 8dBi, 8dBi
- Features：Cable - 1m
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：11.417" (290.00mm)
- Applications：3G, 4G, 5G, Bluetooth, GSM, ISM, LoRa, LPWAN, LTE, Sigfox, UMTS, Wi-Fi, Zigbee™
- Power - Max：50 W
Antennas RF datasheet and documents for OSCAR18/1M/SMAM/S/S/22
Antennas RF Overview
The Siretta OSCAR18/1M/SMAM/S/S/22 is a multi-band directional antenna designed for 2G, 3G, 4G, and Wi-Fi applications. It features an enclosed Yagi configuration with wall-mount installation capabilities. The unit includes a 1-meter cable terminated with an SMA male connector. Operating frequencies span from 400 MHz to 6000 MHz, supporting broad cellular and wireless standards.
Antennas RF Feature Summary
- Enclosed Yagi design for directional signal transmission
- Wall-mount installation structure
- Integrated 1-meter coaxial cable assembly
Antennas RF Applications
- 2G (GSM/GPRS) network connectivity
- 3G mobile broadband services
- 4G LTE data transmission
- Wi-Fi wireless local area networks
Antennas RF Procurement Notes
Verify the specific connector type against project requirements, as naming conventions may vary between SMA and Type N specifications in different listings. Confirm that the enclosed Yagi form factor aligns with spatial constraints. Ensure the 1-meter cable length meets distance needs without requiring additional extension hardware.
Antennas RF Selection Notes
Select this model when directional gain is required over omnidirectional coverage for cellular or Wi-Fi signals. The enclosed design offers environmental protection suitable for outdoor or semi-outdoor mounting. Verify frequency compatibility across the 400 MHz to 6GHz range to ensure support for all target protocols.
Antennas RF Part Context
This component belongs to the Siretta antenna portfolio, specifically engineered for multi-protocol wireless infrastructure. It addresses scenarios requiring focused signal reception or transmission across multiple generations of mobile communication standards, integrating structural durability with RF performance.
Antennas RF Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Evaluate other Siretta Yagi series antennas for similar directional characteristics if direct substitution is necessary.
