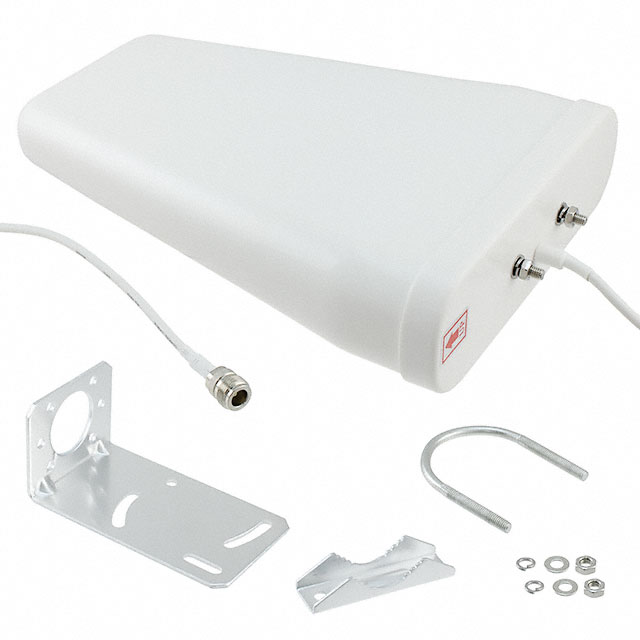

OSCAR18/X/NF/S/S/22

$72.08

Description：RF ANT 400MHZ/6GHZ YAGI N FEM
Series：OSCAR 18
Mfr：Siretta Ltd
Package：Bulk

SKU:076b21c45bd8 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 400MHZ/6GHZ YAGI N FEM
Series：OSCAR 18
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, Cellular, General ISM, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：-
Frequency Range：400MHz ~ 6GHz
Antenna Type：Yagi
Number of Bands：-
VSWR：1.5
Return Loss：-
Gain：-
Features：Cable - 200mm
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Pole Mount, Wall Mount
Height (Max)：8.189" (208.00mm)
Applications：2G, 3G, 4G, 5G, Bluetooth, GSM, ISM, LoRa, LTE, UMTS, Wi-Fi, WLAN, Zigbee™
Power - Max：50 W

Download product information

OSCAR18/X/NF/S/S/22

Overview

The OSCAR18/X/NF/S/S/22 is a PVC Yagi antenna manufactured by Siretta Ltd. It features an N-Female connector and operates within a frequency range of 800 MHz to 2500 MHz. The antenna provides a gain of 10 dBi and is designed for GSM applications. It supports mounting via cable, making it suitable for pole or wall installation scenarios.

Feature Summary

Directional Yagi design for focused signal transmission
Wideband operation covering multiple cellular bands
Robust PVC construction for durability

Applications

GSM communication systems
Long-distance wireless links
Weak-signal environment installations

Procurement Notes

Verify the specific connector type and polarity against system requirements before ordering. Confirm that the operating frequency range aligns with the intended application bands. Ensure mounting hardware compatibility with the cable mount style specified in the datasheet.

Selection Notes

Select this model when directional gain is required over omnidirectional coverage. The 10 dBi gain supports extended range applications. Consider the N-Female interface for compatibility with existing RF infrastructure components.

Part Context

This component belongs to the OSCAR18 series of antennas from Siretta Ltd. The series includes variants with different connectors and frequency ranges. This specific part number denotes the configuration with an N-Female connector and the 800-2500 MHz operational band.

Replacement Considerations

Check for other OSCAR18 variants with compatible connectors. Verify if alternative Yagi antennas meet the 10 dBi gain requirement. Ensure substitute parts support the same frequency range and mounting style.
