OSCAR1A/10M/SMAM/S/S/31

$43.82

Description：RF ANT 850/900MHZ WHIP FME BRK
Series：OSCAR 1A
Mfr：Siretta Ltd
Package：Bulk

SKU:1cc7088ca8e5 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

OSCAR1A/10M/SMAM/S/S/31 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is RF ANT 850/900MHZ WHIP FME BRK. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for OSCAR1A/10M/SMAM/S/S/31

Description：RF ANT 850/900MHZ WHIP FME BRK
Series：OSCAR 1A
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range：-
Antenna Type：Whip, Straight
Number of Bands：5
VSWR：1.8
Return Loss：-
Gain：5dBi
Features：-
Termination：SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：8.071" (205.00mm)
Applications：3G, 4G, 5G, GPRS, GSM, LoRa, LTE, NB-IOT, UMTS
Power - Max：-

Antennas RF datasheet and documents for OSCAR1A/10M/SMAM/S/S/31

OSCAR1A/10M/SMAM/S/S/31

Antennas RF Overview

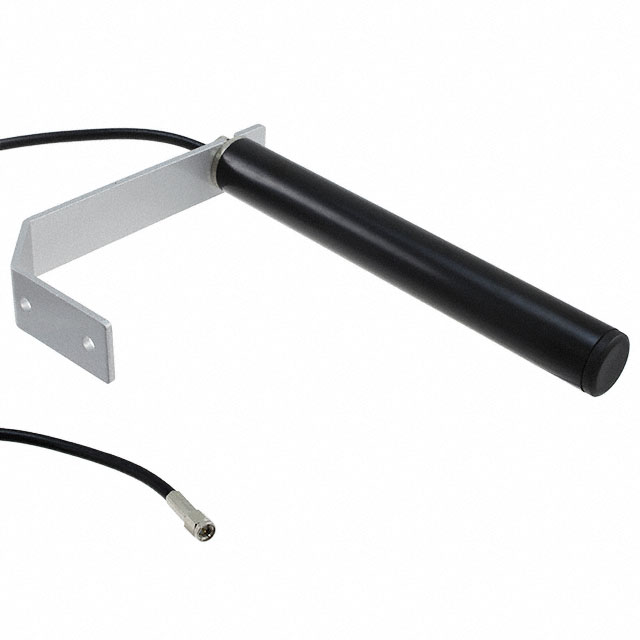

The Siretta OSCAR1A/10M/SMAM/S/S/31 is a broadband whip antenna designed for bracket mounting. It operates across five frequency bands: 850MHz, 900MHz, 1.8GHz, 1.9GHz, and 2.1GHz. The unit features an SMA male connector and provides a gain of 5dBi with a VSWR of 1.8. The antenna has a maximum height of 205.00mm and includes a 10-meter cable length.

Antennas RF Feature Summary

Supports multiple cellular standards including GPRS, GSM, and UMTS
Utilizes a straight whip design for omnidirectional coverage
Equipped with a robust bracket mount for secure installation

Antennas RF Applications

GPRS network infrastructure
GSM communication systems
UMTS mobile networks

Antennas RF Procurement Notes

Verify the specific part number against official Siretta documentation to ensure compatibility with target cellular bands. Confirm that the SMA male connector polarity matches the receiving equipment interface requirements. Check for any regional regulatory certifications required for deployment in the intended market.

Antennas RF Selection Notes

Select this model when multi-band support for legacy and current cellular technologies is required. The 10-meter cable allows for flexible placement away from interference sources. Ensure the bracket mounting style fits the physical constraints of the installation site compared to other OSCAR series variants.

Antennas RF Part Context

This component belongs to the OSCAR series of RF antennas manufactured by Siretta Ltd. It is distinct from similar models like the OSCAR1A/5M variant due to its extended 10-meter cable length. The product line focuses on versatile mounting solutions for various wireless communication protocols.
