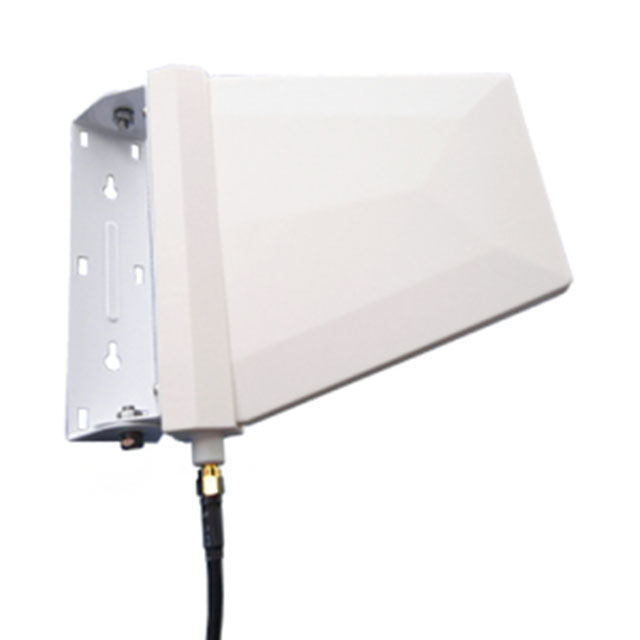

OSCAR20A/5M/SMAM/S/S/15 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is 5G/4G/3G/2G YAGI ANTENNA SMA FEM. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for OSCAR20A/5M/SMAM/S/S/15
- Description：5G/4G/3G/2G YAGI ANTENNA SMA FEM
- Series：OSCAR 20A
- Mfr：Siretta Ltd
- Package：Bulk
- RF Family/Standard：Bluetooth, Cellular, General ISM, WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：780MHz, 1.94GHz, 2.3GHz, 2.6GHz, 3.4GHz
- Frequency Range：600MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.2GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.5GHz
- Antenna Type：Yagi
- Number of Bands：5
- VSWR：1.3
- Return Loss：-
- Gain：7dBi, 8dBi
- Features：Cable - 5m
- Termination：SMA Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：1.378" (35.00mm)
- Applications：2G, 3G, 4G, 5G, Bluetooth, ISM, LoRa, LTE, NB-IOT, UMTS, WLAN, Wi-Fi, Zigbee™
- Power - Max：50 W
Antennas RF datasheet and documents for OSCAR20A/5M/SMAM/S/S/15
Antennas RF Overview
The Siretta OSCAR20A/5M/SMAM/S/S/15 is a high-gain, quad-band Yagi antenna designed for 4G, 3G, and 2G cellular communications. It operates across multiple frequency bands to support GSM, GPRS, UMTS, LTE, and other wireless protocols. The unit features an external omnidirectional design with a rubber disk physical form factor. It includes a 5-meter lead length terminated with SMA male connectors. The antenna provides enhanced signal reception for remote applications requiring robust connectivity.
Antennas RF Feature Summary
- High-gain quad-band performance for 4G, 3G, and 2G networks
- External omnidirectional radiation pattern with rubber disk construction
- Integrated 5-meter cable with SMA male connectors
Antennas RF Applications
- Cellular or PCS terminal installations
- Modem and wireless network connectivity
- Remote monitoring and IoT devices supporting LTE and NB-IoT
Antennas RF Procurement Notes
Verify the specific model suffix against official Siretta documentation to confirm connector polarity and cable length specifications. Ensure compatibility with existing SMA interfaces on target equipment. Confirm regional regulatory compliance requirements prior to deployment in restricted zones.
Antennas RF Selection Notes
Select this antenna when high-directional gain is required for distant base stations. Compare against Omni-series models if broader coverage angles are needed instead of focused range. Validate that the 5-meter cable length suits the installation geometry without excessive signal loss.
Antennas RF Part Context
This component belongs to the Siretta OSCAR series, which specializes in high-performance directional antennas for cellular bands. The series targets industrial and commercial sectors needing reliable long-range wireless links. It complements the company's portfolio of multi-band solutions for diverse communication standards.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult Siretta technical support for direct equivalents within the OSCAR family.
