OSCAR42/X/NTYPEF/S/S/19

$48.23

Description：4G/LTE OMNI ANTENNA 1/4DBI GAIN
Series：OSCAR 42
Mfr：Siretta Ltd
Package：Bulk

SKU:98f1ec3ffe43 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

OSCAR42/X/NTYPEF/S/S/19 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is 4G/LTE OMNI ANTENNA 1/4DBI GAIN. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for OSCAR42/X/NTYPEF/S/S/19

Description：4G/LTE OMNI ANTENNA 1/4DBI GAIN
Series：OSCAR 42
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：Cellular
Frequency Group：UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：830MHz, 2.2GHz
Frequency Range：700MHz ~ 960MHz, 1.7GHz ~ 2.7GHz
Antenna Type：Whip, Straight
Number of Bands：2
VSWR：3.7
Return Loss：-
Gain：1dBi, 4dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：11.811" (300.00mm)
Applications：3G, 4G
Power - Max：-

Antennas RF datasheet and documents for OSCAR42/X/NTYPEF/S/S/19

OSCAR42/X/NTYPEF/S/S/19

Antennas RF Overview

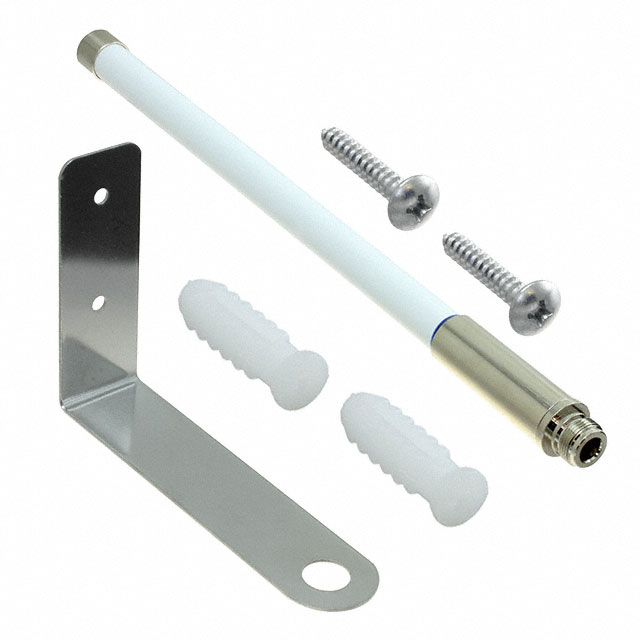

The Siretta OSCAR42/X/NTYPEF/S/S/19 is a multi-band omnidirectional rod antenna designed for 4G/LTE and legacy cellular connectivity. It operates across frequency ranges of 700-960 MHz and 1700-2700 MHz, providing a gain of 1.25 dBi. The unit features an N-Type female connector with nut fix and measures 300 mm in length by 19 mm in width. Maximum operating temperature is +65°C.

Antennas RF Feature Summary

Omnidirectional radiation pattern for consistent signal coverage
Multi-band support for 2G, 3G, and 4G/LTE networks
Compact fibreglass construction suitable for external mounting

Antennas RF Applications

Industrial IoT installations requiring extended cellular range
M2M communication gateways
Remote telemetry data collection systems

Antennas RF Procurement Notes

Verify the specific ordering suffix matches the required connector type and cable length configuration. Confirm that the N-Type female interface aligns with existing base station or modem hardware. Ensure environmental ratings meet the deployment site's thermal requirements.

Antennas RF Selection Notes

Select this model when broad frequency coverage across LTE bands is necessary. The compact form factor allows for discreet installation on vehicles or small structures. Verify compatibility with standard N-Type ports on the target device before integration.

Antennas RF Part Context

This component belongs to the Siretta OSCAR series of external antennas. It complements internal modules by extending range for devices lacking integrated high-gain solutions. The product line focuses on robust connectivity for industrial and commercial applications.
