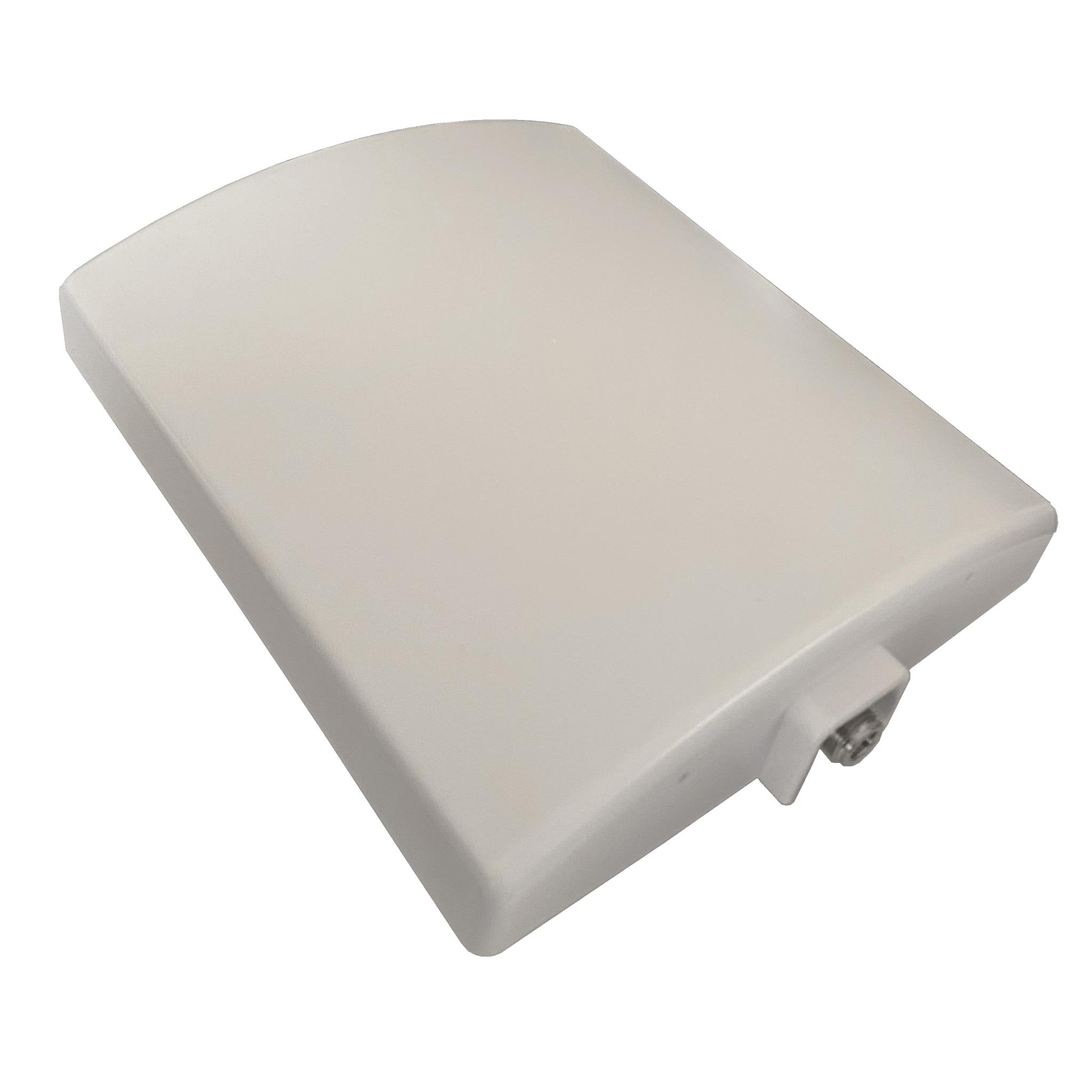

OSCAR43/X/NTYPEF/S/S/17 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is 450MHZ PANEL TYPE POLE MOUNT ANT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for OSCAR43/X/NTYPEF/S/S/17
- Description：450MHZ PANEL TYPE POLE MOUNT ANT
- Series：OSCAR 43
- Mfr：Siretta Ltd
- Package：Bulk
- RF Family/Standard：General ISM
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：450MHz
- Frequency Range：400MHz ~ 480MHz
- Antenna Type：Panel
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：5dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Pole, Wall Mount
- Height (Max)：1.850" (47.00mm)
- Applications：ISM
- Power - Max：50 W
Antennas RF datasheet and documents for OSCAR43/X/NTYPEF/S/S/17
Antennas RF Overview
The OSCAR43/X/NTYPEF/S/S/17 is an RF antenna manufactured by Siretta Ltd, designed for ISM band applications. It features a panel mount configuration with a Type N female connector interface. The unit includes gain options of 1.5 dBi and 5 dBi. Physical specifications include a weight of 0.487 kg. The antenna supports vertical polarization and is suitable for pole or wall mounting installations.
Antennas RF Feature Summary
- Supports dual gain configurations of 1.5 dBi and 5 dBi
- Features a Type N female connector interface
- Designed for ISM band frequency operations
- Allows flexible installation via pole or wall mounting
Antennas RF Applications
- ISM band wireless communication systems
- Panel mounted RF signal transmission
- Pole or wall mounted antenna installations
Antennas RF Procurement Notes
Verify the specific gain variant required (1.5 dBi or 5 dBi) as both are associated with this part number family. Confirm that the Type N female connector matches the receiving equipment interface. Check current stock status as availability may vary. Ensure the mounting environment supports the specified physical dimensions and weight.
Antennas RF Selection Notes
Select this model when a robust ISM band antenna with a standard Type N female connector is required. Consider the available gain levels to match system link budget requirements. Verify compatibility with existing mounting infrastructure for pole or wall installation. Ensure the operating frequency range aligns with the specific ISM band application needs.
Antennas RF Part Context
This component belongs to Siretta's OSCAR series of RF antennas. It is engineered for reliable performance in industrial and commercial wireless environments. The design emphasizes durability and ease of integration into existing RF systems requiring standardized connectors.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are documented. Evaluate other Siretta models within the OSCAR series if alternative gain values or connector types are needed.
