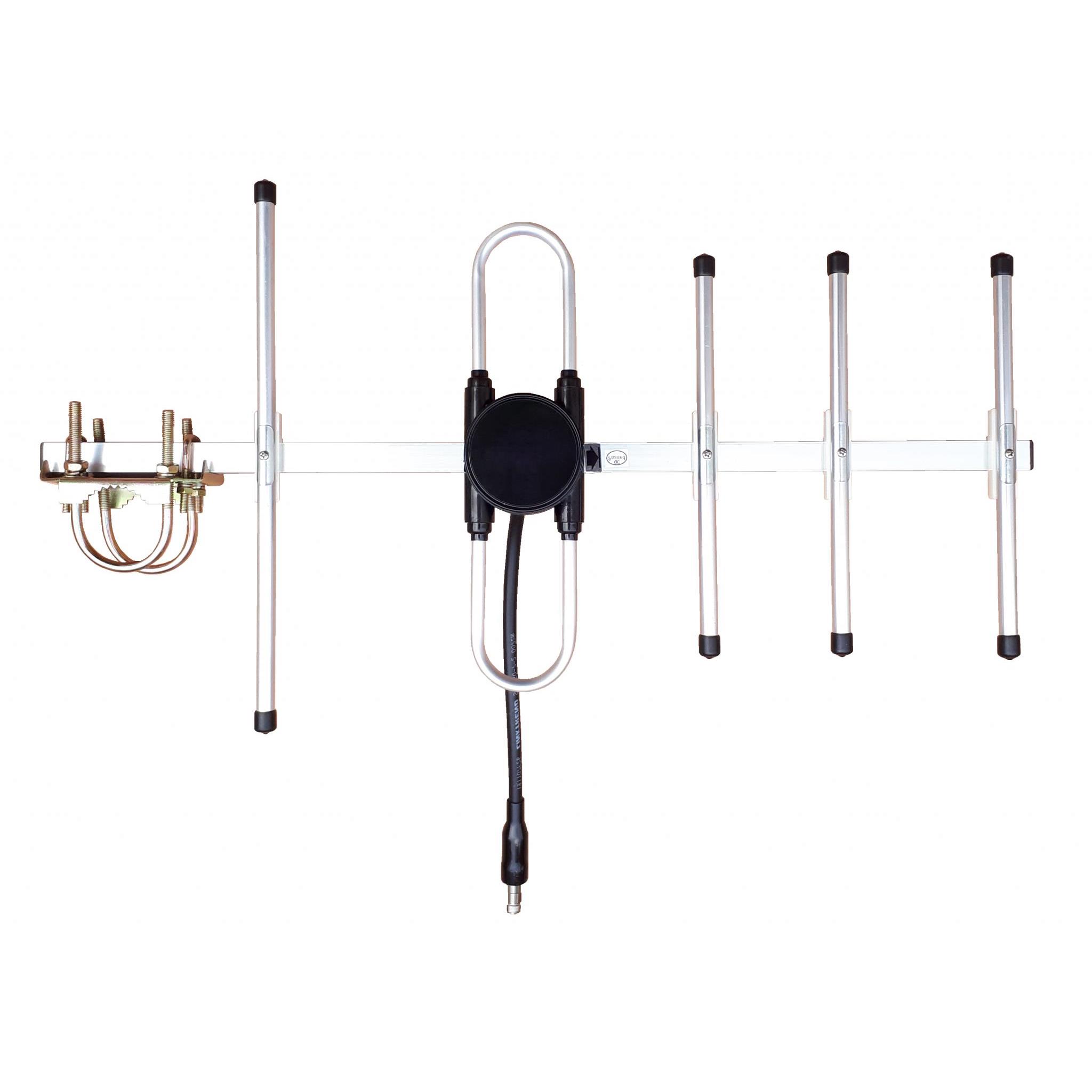

OSCAR44/0.3M/NTYPEF/S/S/17 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is 450MHZ 5 ELEMENT YAGI ANTENNA NT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for OSCAR44/0.3M/NTYPEF/S/S/17
- Description：450MHZ 5 ELEMENT YAGI ANTENNA NT
- Series：OSCAR 44
- Mfr：Siretta Ltd
- Package：Bulk
- RF Family/Standard：General ISM
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：450MHz
- Frequency Range：400MHz ~ 480MHz
- Antenna Type：Yagi, 5-Element
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：9dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：1.417" (36.00mm)
- Applications：ISM
- Power - Max：100 W
Antennas RF datasheet and documents for OSCAR44/0.3M/NTYPEF/S/S/17
Antennas RF Overview
The Siretta OSCAR44/0.3M/NTYPEF/S/S/17 is a five-element Yagi antenna designed for the ISM band, specifically centered around 450 MHz. It features a Type N female connector and includes a 0.3-meter cable length. The unit is engineered for bracket mounting applications, providing directional gain suitable for point-to-point or point-to-multipoint communication links within industrial IoT networks.
Antennas RF Feature Summary
- Five-element Yagi design for directional signal transmission
- Integrated Type N female connector interface
- Short 0.3-meter cable assembly for compact installation
Antennas RF Applications
- Industrial IoT sensor network backhaul
- Point-to-point data link establishment
- ISM band wireless communication systems
Antennas RF Procurement Notes
Verify the specific frequency range requirements against the official datasheet to ensure compatibility with the 450 MHz ISM band operation. Confirm that the bracket mounting style aligns with the physical installation constraints of the target site. Ensure the Type N female connector matches the receiving equipment interface specifications before finalizing the order.
Antennas RF Selection Notes
Select this model when directional gain is required over omnidirectional coverage in the 450 MHz range. The short cable length makes it suitable for direct mounting near the radio unit. Consider the bracket mount form factor for fixed installations where pole mounting is not feasible or desired.
Antennas RF Part Context
This component belongs to the Siretta OSCAR series of RF antennas, which are tailored for industrial Internet of Things applications. The manufacturer specializes in wireless communications hardware, providing robust solutions for remote monitoring and control scenarios requiring reliable data transmission in challenging environments.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's current product catalog for equivalent models with similar gain characteristics and connector types if this specific variant is discontinued.
