OSCAR67/X/NTYPEF/33

$88.15

Description：HIGH GAIN 9 DBI DIRECTIONAL ISM
Series：Oscar 67
Mfr：Siretta Ltd
Package：Bulk

SKU:3ea43e43d930 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

OSCAR67/X/NTYPEF/33 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is HIGH GAIN 9 DBI DIRECTIONAL ISM. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for OSCAR67/X/NTYPEF/33

Description：HIGH GAIN 9 DBI DIRECTIONAL ISM
Series：Oscar 67
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：802.15.4
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：830MHz
Frequency Range：700MHz ~ 960MHz
Antenna Type：Panel
Number of Bands：1
VSWR：1.35
Return Loss：-
Gain：9dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Base Mount
Height (Max)：1.772" (45.00mm)
Applications：ISM, LoRa, Sigfox, Zigbee™
Power - Max：100 W

Antennas RF datasheet and documents for OSCAR67/X/NTYPEF/33

OSCAR67/X/NTYPEF/33

Antennas RF Overview

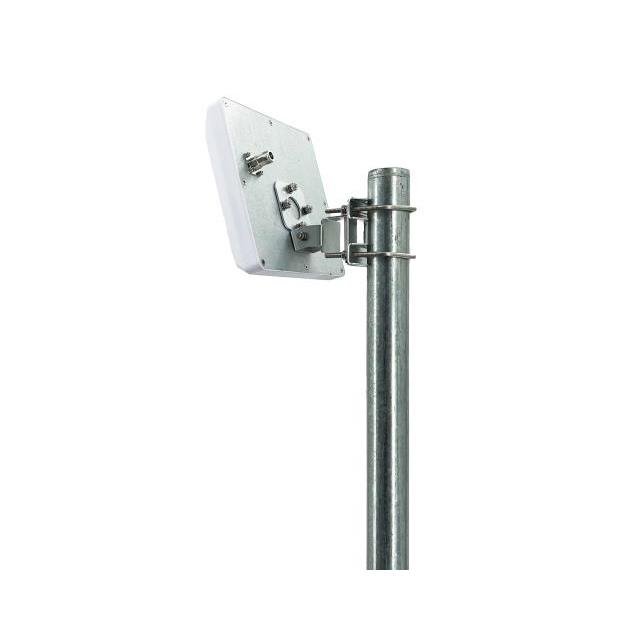

The OSCAR67/X/NTYPEF/33 is a square directional antenna designed for ISM band applications including LoRa, SigFox, ZigBee, and Z-Wave. It operates within a frequency range of 700 MHz to 960 MHz with a gain of 9.16 dBi. The unit features a linear vertical polarization and supports a power rating of 100 W. It utilizes an N-Type female connector and employs base mount installation.

Antennas RF Feature Summary

Square directional design optimized for specific ISM band protocols
High gain performance supporting long-range communication
Robust construction suitable for demanding wireless environments

Antennas RF Applications

LoRa network infrastructure
SigFox IoT deployments
ZigBee mesh networks
Z-Wave smart home systems

Antennas RF Procurement Notes

Verify the specific protocol requirements against the 700-960 MHz operational range. Confirm that the N-Type female connector interface matches the existing equipment ports. Ensure the mounting configuration aligns with the base mount design specifications provided in the official documentation.

Antennas RF Selection Notes

Select this model when high-gain directional coverage is required for sub-GHz ISM bands. The 100 W power rating indicates suitability for higher transmission power scenarios. Consider the square form factor for spatial constraints compared to traditional rod antennas.

Antennas RF Part Context

This component belongs to Siretta's RF Antenna product line, specifically tailored for industrial and commercial wireless applications. It serves as a specialized solution for low-power wide-area networks and short-range wireless protocols operating in the specified frequency spectrum.
