OTERGCLTNF-133.330000

Oscillators Overview

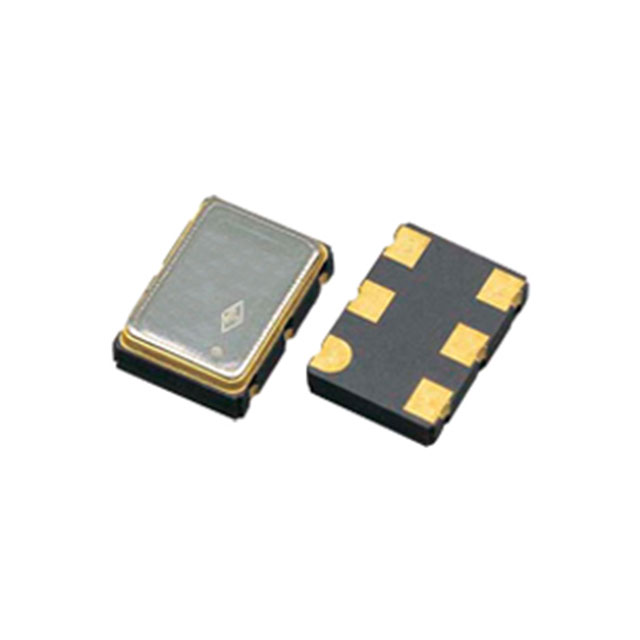

The OTERGCLTNF-133.330000 is a standard crystal oscillator (XO) manufactured by Taitien, operating at a fixed frequency of 133.33 MHz. It utilizes LVPECL output logic for high-speed digital interfacing and supports a supply voltage range compatible with 3.3V systems. The device features an enable/disable control function to manage power consumption during idle states. Packaged in a compact 6-SMD, no-lead form factor, it is designed for surface-mount assembly on printed circuit boards. This component provides precise timing signals required for synchronous data transmission and clock distribution in electronic systems.

Oscillators Feature Summary

• LVPECL output interface for high-speed signal integrity
• Integrated enable and disable control functionality
• Compact 6-SMD surface-mount package design

Oscillators Applications

• High-speed serial communication interfaces
• Clock distribution networks
• Data acquisition systems

Oscillators Procurement Notes

Verify the specific ordering suffix matches the required frequency tolerance and stability specifications. Confirm that the LVPECL output voltage levels align with the receiving device inputs. Ensure the 3.3V supply requirement is supported by the system power rail. Check RoHS compliance status if environmental regulations apply to the final assembly.

Oscillators Selection Notes

Select this component when LVPECL signaling is required for noise immunity and speed. The 133.33 MHz frequency suits specific serial standards like PCIe or Ethernet. Consider the 6-SMD footprint for space-constrained designs. Evaluate the enable pin utility for power management strategies in battery-operated or low-power applications.

Oscillators Part Context

This oscillator belongs to Taitien's portfolio of frequency control products, which includes crystal oscillators, TCXOs, and OCXOs. Taitien supplies timing solutions for various industries, including consumer electronics and industrial equipment. The OTERGCLTNF series represents standard XO offerings with integrated control features.

Oscillators Replacement Considerations

Cross-reference with other 133.33 MHz LVPECL oscillators in 6-SMD packages. Verify equivalent electrical parameters such as supply voltage, current consumption, and load capacitance before substitution.
