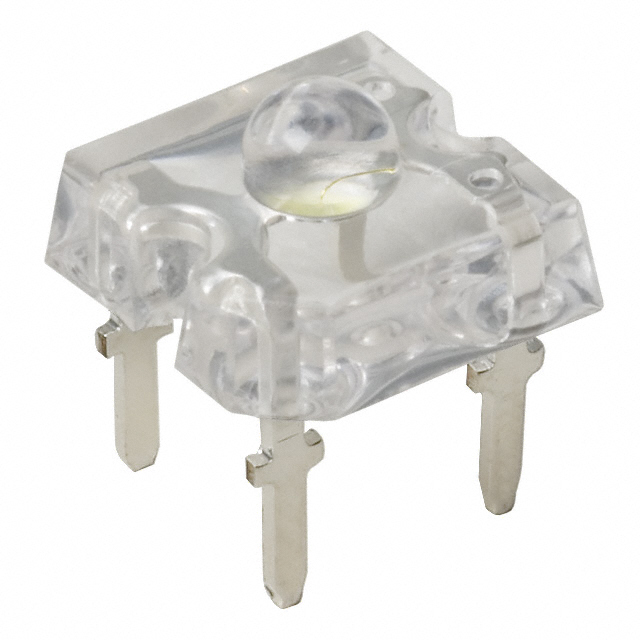

OVFSW6C8

$0.65

Description：LED WHITE CLEAR T/H
Series：-
Mfr：TT Electronics/Optek Technology
Package：Tube

SKU:75fb315add07 Category: LED Indication - Discrete Brand: TT Electronics/Optek Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

OVFSW6C8 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists TT Electronics/Optek Technology. Its product description is LED WHITE CLEAR T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for OVFSW6C8

Description：LED WHITE CLEAR T/H
Series：-
Mfr：TT Electronics/Optek Technology
Package：Tube
Color：White
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：-
Lens Style：Round with Domed Top
Lens Size：3.00mm Dia
Voltage - Forward (Vf) (Typ)：3.6V
Current - Test：30mA
Viewing Angle：60°
Mounting Type：Through Hole
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：4-DIP (0.200", 5.08mm)
Supplier Device Package：-
Size / Dimension：7.60mm L x 7.60mm W
Height (Max)：6.15mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for OVFSW6C8

OVFSW6C8

LED Indication - Discrete Overview

The OVFSW6C8 is a through-hole white LED manufactured by Optek / TT Electronics. It features a square lens with water clarity and emits white light at a viewing angle of 60 degrees. Key electrical parameters include a forward voltage of 3.6 V, a forward current rating of 30 mA, and an optical intensity of 1200 mcd. The component has a power rating of 154 mW and operates within a temperature range of -40 °C to +95 °C. Physical dimensions are 7.6 mm in length and width, with a height of 4.4 mm.

LED Indication - Discrete Feature Summary

Emits white light with a specified viewing angle for directional illumination.
Features a water-clear square lens for consistent optical transmission.
Designed for through-hole mounting on printed circuit boards.

LED Indication - Discrete Applications

Indicator lighting in electronic equipment
Status indication in control panels
General-purpose visual signaling

LED Indication - Discrete Procurement Notes

Verify the manufacturer part number OVFSW6C8 against official Optek or TT Electronics documentation to confirm specifications. Ensure that the required forward current and voltage ratings align with the target circuit design. Check for RoHS compliance status as indicated in the official datasheet before finalizing procurement.

LED Indication - Discrete Selection Notes

Select this component when a through-hole white LED with a 60-degree viewing angle is required. Consider the 3.6 V forward voltage and 30 mA current limits for driver compatibility. Evaluate the operating temperature range of -40 °C to +95 °C against environmental conditions. Confirm that the physical footprint matches the PCB layout constraints.

LED Indication - Discrete Part Context

The OVFSW6C8 belongs to the single-color LED product category from Optek / TT Electronics. It is classified as a white LED suitable for general illumination and indicator applications. The component is part of the broader portfolio of discrete optoelectronic devices offered by the manufacturer.
